Electric Aquatic Plant Removal Trash Garbage Collection Harvester

Product Description

Electric Aquatic Plant Removal Trash Garbage Collection Harvester Product Description
1) Our Weed Harvester is a kind of modern aquatic plants harvesting equipments, which is the collection of mowing grass, gathering, salvaging, filtering water, transporting and unloading.2)All operating procedure adopts full hydraulic control, simple, convenient and flexible. It is indispensable to urban water scenic spot. And it is also can be used as Rubbish Salvage Boat, which has received good results.
2.Harvester pictures
3. SH-9-1500 medium size full automatic harvester parameter

NO.	item	parameter
1	dimension	9.5mx4.3mx2.55m
	capacity	1500m2/h
	harvest depth	0.8m
	harvest width	1.4m
	continue working time	24hours
	working speed	3-5KM/h
	sail speed	5-7KM/h
	transmission way	full hydraulic
2	hull .	4.5mx2.9mx0.8m
	material	Bottom plate 4mm,side plate:4mm,deck plate:3mm.
3	main engine
	manufacturer	Weifang diesel engine
	type	4100
	power	45KW
	drive cooling way	electrical
4	walking way	wheel
	wheel size	1.1mx0.55m
	quantity	2 pieces
	drive way	hydraulic motor 2 sets
5	front collecting arm
	dimension	5mx1mx1.3m
	transmission way	hydraulic motor 1 set
	lifting way	hydraulic cylinders
	chain material	stainless
6	back storage rod
	dimension	8.5mx1mx0.7m
	chain material	stainless
	storage capacity	7.5m3
	transmission way	2 hydraulic motor 2 sets
	lifting way	2 hydraulic cylinders 2 pieces
7	operation room	1 1 set
	dimension	1.5mx0.75mx1.6m

4.Production processing
5. Detailed information
1.Shenghe aquatic weed harvester is usually used in river, river, reservoir, canal and coasts for cutting, collecting, storing and transporting, water grass and floating garbage.
2.All the equipment of the ship can work automatically and can save much labor force for its high efficiency.
3.Its hull consists two side pontoons. All the other equipment, including operation room, conveyor belting cabin, engine, are fixed by bolts. It is to be easy to dismantle for transportation by road, rail or water, and easy to reassemble at project site.
4.The machine is driven by paddle wheel instead of the screw propeller, which can make sure the wheel is not entangled by the underwater weed.
5.The system is perfectly optimized so that the machine can work efficiently.
1. The full automatic aquatic weed harvester is used to clean the aquatic weed, water hyacinth, reed, floating garbage etc.
2. The collecting cabin could move up and down by the hydraulic lifting system. It will be adjusted according to the collecting depth. Front collecting cabin, middle collecting cabin and rear collecting cabin are all made by stainless steel conveyor belt.
3. All the gathering, collecting, draining, and discharge work are fully automatic. The efficiency is very high, which is tens times of man power.
6.SHENG HE Aquatic harvester features
1.Shenghe aquatic weed harvester is usually used in river,river,reservoir,canal and coasts for cutting, collecting,storing and transporting,water grass and floating garbage. All the equipment of the ship can work automatically and can save much labor force for its high efficiency.
2.Its hull consists two side pontoons. All the other equipment, including operation room, conveyor belting cabin, engine, are fixed by bolts.
3. It is to be easy to dismantle for transportation by road, rail or water, and easy to reassemble at project site.
4.The machine is driven by paddle wheel instead of the screw propeller,which can make sure the wheel is not entangled by the underwater weed.The system is perfectly optimized so that the machine can work efficiently.
7.Aquatic harvester application
1.Shenghe aquatic plant harvesters are hydraulically driven with reciprocating knives mounted on the harvesting head to cut the aquatic vegetation.2.The vegetation is then transferred from the front conveyor to the storage hold,with the water filtrated during the transportation.3.The storage conveyors are gradually filled up with tightly packed plants and this harvested weed is then transferred to the shoreline or into a dump truck via a shore conveyor.

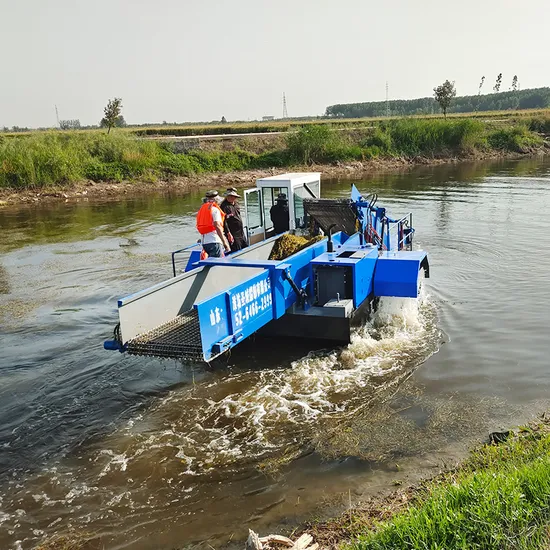

8. Harvester at working site :
Company Profile
Factory introduce and certifications :

Weifang Shenghe Environmental protection Machinery manufactering Co., Ltd , is one of China leading company of sand & gold& diamond mining equipments, which has more than 10 years' experience in producing cutter suction dredgers.jet suction dredgers,bucket chain dredger.diamond.gold selection dredger, sand washing plant, gold washing plant, sand washing & screening machinery, sand transport barge,work boat and so on. Successful series of products have won the recognization and approval of general administration of Quality Supervision. Now our company's products are widely exported and used in the Aisa,Afrrica,South America,Middle Easr and other regions.

Our company covers an area of 20000 square meters. The company adopts modern enterprise management concept. seiko manufacturing. forge ahead. the product quality is superior to the domestic and foreign counterparts products. Company technical force is abundant. the craft is advanced. complete range of articles. in strict accordance with ISO9001 standards. organization.design. production. sales and management.
Company sets scientific research and development. engineering design. installation. debugging. production services for the integration of domestic comprehensive backbone enterprises. products with free-pollution disposal equipment. garbage disposal equipment. high concentration wastewater treatment equipment. organic fertilizer production equipment. air treatment equipment. sludge treatment equipment. automobile processing equipment such as environmental protection equipment . And can design according to customer demand. customization of all kinds of efficient and practical equipment and production line. After Sales Service
1.Professional beneficiation for 10 years. We have our own professional research and development team.
2.Shenghe provides optimized solutions for your mine, one-stop service for mineral processing plant, include sample test, mine design, equipment manufacture, etc.3.Short delivery time: All products you want can be completed within short time.4.24 Hours After-sale service and solve the after-sale problems in time.
FAQ
1. Is our company a direct or indirect producer? - Our company is a direct producer. 2. What's the main product of our company? - Our main product is dredging equipments. 3. Are our products certified or patented? - Yes, we only provide certified products. 4. Can we offer good after sales service? - Yes, the warranty of all our products is one-year and all spare parts will be provided fast and cheap forever.

---
