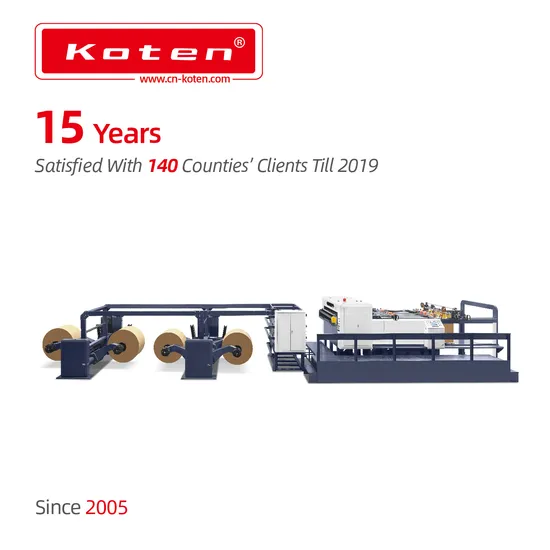

Kraft Paper/Paperboard/Grey Paper/Craft Paper Sheeter, Roll to Sheet Rotary Paper Sheeter for Sale

Product Description

Process.
Finished Products.
Main features:
This machine is suitable for cutting the large coil packaging material, such as the paper, paper plastic complex material and color printing complex material, etc. This machine is widely used for application in the industries of paper processing and printing packaging.
Application range:
The machine is suitable for cutting in longitudinal direction and cross direction the colied materials like paper, trademarks, cigarette labels, wall calendars, spirits boxes, playing cards, paper-plastic compound materials, etc.
Function: Transverse cutting with flat blade, automatic feeding, automatic stowing and photoelectric tracking.
Main Specifications.

Model	GDQ-1400-4/1700-4
Unwinding rolls	Four
Max. diameter of unwinding roll	1650mm(65'' MAX.)
Max. Stack Height	1300mm
Transverse Cutting speed	300m /min
Cutting Length	400-1600mm
Precision	±0.1mm---±0.5mm
Max. speed	300cuts/min
Paper	50-500gsm
Power	AC380V/220V/50HZ
Machine weight	15000kgs/17000kgs
Power requirement	Max.5.5kg/cm2X5M3/min.
Machine size	1700x3900x2350mm/1700x4200x2350mm

---
