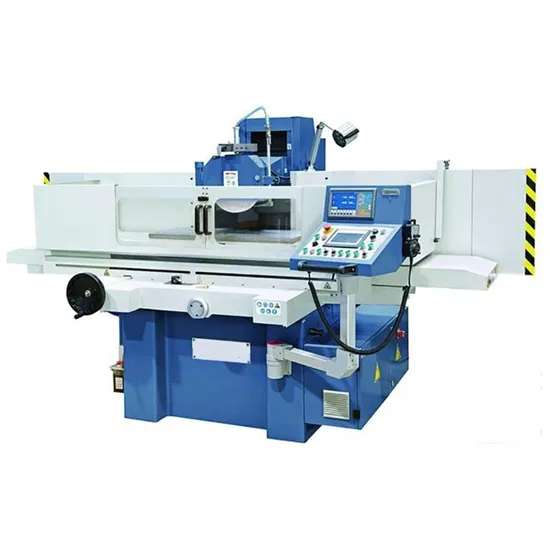

Fsg-Wx2 Surface Grinding Machine Tool

Product Description

Product Description
Standard equipment
Coolant tank Standard electro magnetic chuck Balancing arbor Wheel flange Wheel extractor Leveling wedge and bolt Tool box and tools Standard grinding wheel Working lamp Wheel dresser stand
(not include diamond pen) Build in electro magnetic chuck controller PLC auto grinding controller
(only for A models) Optional equipment Balancing stand dust collector Coolant tank with magnetic separator Coolant tank with paper filter Coolant with magnetic separator and paper filter Parallel wheel dresser Luxurious magnetic chuck controler Universal dresser Radius & angle dresser Sine dresser Digital readout
Product Parameters

Model Description		Unit	FSG-2050M	FSG-2550M	FSG-3063M			FSG-30100M	FSG-4080M	FSG-40100M
			FSG-2050R	FSG-2550R	FSG-3063R			FSG-30100R	FSG-4080R	FSG-40100R
			FSG-2050A	FSGA-2550A	FSG-3063A			FSG-30100A	FSG-4080A	FSG-40100A
(×)Table size(w×L)		mm	200×508	254×508	305×635			305×1020	406×813	406×1020
Max. longitudinal travel		mm	560	560	765			1130	910	1130
Max. cross travel		mm	240	275	340			340	450	450
Max. distance from spindle center to table surface		mm	450	450	580			580	580	580
Magnetic chuck size		mm	200×460	250×500	300×600			300×1000	400×800	400×1000
Speed of table longitudinal movement		m/min	5~25
Table transverse movement	intermittent feed	mm/ stroke	0.1~8				0.1-8
	Rapid speed	mm/min	790				990
	Feed of hand wheel	mm/div.	0.02				0.02
Wheel head vertical movement	Auto down feed	mm	―――(M/R mode) 0.005/0.01/0.02/0.03/0.04/0.05(Only for A model)
	Rapid speed	mm/min	―――(M mode) 650/480(Only for R/A model)
	Feed of hand wheel	mm/div.	0.005
Grinding wheel	Speed	rpm	2850(50Hz),3450(60Hz)			1450(50Hz),1750(60Hz)
	Size (OD×W×ID)	mm	200×20×31.75			350×40×127
Spindle Motor		kW	2.2			4
Hydraulic pump motor		kW	0.75			2.2
Cooling pump motor		kW	0.04			0.125
Elevating motor		kW	―――(M mode) 0.25(R mode) 0.5(A model, servo motor)
Cross feed motor		kW	0.04
() Max. loading capacity of table(include magnetic chuck)		kg	180	180	270			400	500	600
Total rated power		kW	3.7		9
Height of machine		mm	1675		1900
Floor space (L×W)		cm	230×160	230×160	290×220			440×220	360×240	440×240
Gross weight		kg	1650	1800	2800			3200	3400	3600
Package dimensions (L×W×H)		cm	200×210×215	200×210×215	235×222×221			295×222×221	285×227×221	295×227×221

---
