China Foundry Equipment Manufacturer Design Customize Green Sand Casting Automatic Static Pressure Molding Line for Foundry Iron Casting

Product Description

Product Description
Equipment components:It includes static pressure moulding machine, whole set of auxiliary devices, sand mould conveyor, electrical control system, hydraulic system, and technological equipment such as flasks and pattern plate bolsters.
Static pressure Automatic molding line consists of more than 30 sets of mechanical, electrical control and hydraulic equipment, flasks and trolleys. It includes shakeout sand , flask separator, flask surface and cavity cleaning, moulding, turnover, gate milling, air hole punching, box closing, box hook tightening, mold cooling and other processes.
Our Advantages
Diagram of two kinds of static pressure line compaction technology:
Multi-piston twin press high pressure molding
Air blowing pre-compaction plus multi-piston high pressure molding
Use: Green Sand Casting Automatic Static Pressure Molding Line is a horizontal parting sand molding equipment, which is suitable for producing engine cylinder block, flywheel shell, brake drum, wheel hub , Manhole cover and other gray iron, ductile iron and steel castings.
Casting production line is widely used in the following fields because of its high efficiency, stability and reliability:
1. Automobile manufacturing:
Automobile manufacturing is one of the most widely used fields of clay sand casting. It can produce key components such as automobile engine, chassis, axle and so on, and meet the demand of automobile manufacturing industry for high quality, high efficiency and high stability.
2. Machine tool manufacturing:
The machine tool manufacturing industry has higher requirements for castings, which require accurate geometric shapes and stable mechanical properties. By adopting static pressure molding technology, high-quality machine tool castings can be produced to meet the needs of machine tool manufacturing industry.
3. Shipbuilding:
The shipbuilding industry needs a large number of large-scale high-quality castings to manufacture important parts such as hull and cabin. The hydrostatic line can produce high-quality castings that meet the needs of shipbuilding industry by adopting the production technology of large castings.
4. Electric power manufacturing industry:
The power manufacturing industry needs a large number of high-temperature and corrosion-resistant castings to manufacture key components such as boilers and steam turbines. As a traditional casting method, clay sand casting can meet the demand of electric power manufacturing industry, and the automatic casting production line of sand treatment static pressure line further improves the production efficiency and quality.
5. Mining machinery manufacturing industry:
Mining machinery manufacturing industry needs a large number of large-scale high-quality wear-resistant castings to manufacture key components such as excavators and mine pumps. Automatic clay sand casting production line can meet the demand of mining machinery manufacturing industry and improve production efficiency and quality.
Product Parameters

Flask size	Casting part
870x650x350/200mm	brake drum, wheel hub
900x700x280/250mm	flywheel shell
500x600x250/250mm	grooved fittings
1200x1000x250/250mm	Agricultural machinery parts and auto parts
1050x1050x390/320mm	Casting pipe,Manhole cover
1200x1000x350/300mm	Agricultural machinery parts and auto parts
920x700x250/250mm	brake drum, wheel hub
1500x1000x200/250mm	machine tool element
1900x1300x280/250mm	Piano parts
2100x1300x280/250mm	Textile machine parts
Customize the static pressure molding line according to the casting and production efficiency of users and the workshop layout.

Detailed Photos

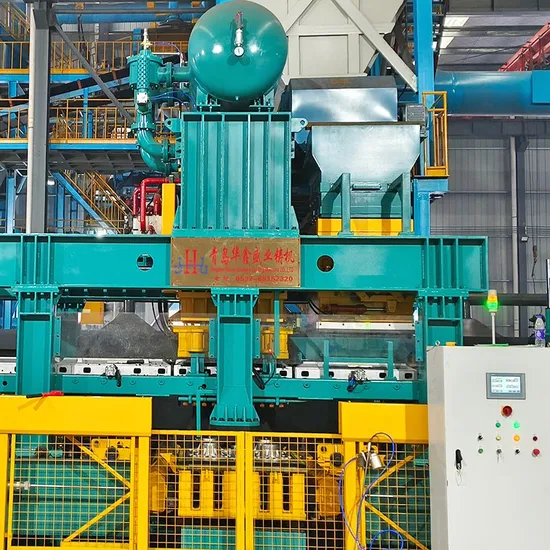

Green Sand Casting Automatic Static Pressure Molding Line pictures:
Company Profile
Qingdao Huaxin is a proud partner of Foundry plants bringing more than 20 combined years of foundry design and productivity to the worlds foundries of all sizes.
Qingdao Huaxin is a professional industrial solution provider, specializing in foundry design and automation in foundry industry.
Certifications
Company products:
Qingdao Huaxin is a professional manufacturer in the design and installation of highly customized and high performance "Green Sand" sand preparation Systems,semi-auto/automatic molding machines,core shooting machine, shot blasting machine,automatic pouring machine and return systems for foundries which produce cast iron, cast steel and aluminum castings.
FAQ
The main characteristics of the static pressure automatic casting molding line are: uniform flask size, good hydraulic compaction and high molding rate
For newly invested foundries, automatic casting line is the first choice, but in the process of consultation, we must be clear about several key points:
1. what is flask size ?
2. What is the required producing capacity?
3. Do you need core setting section ?
4. What is the cooling time after pouring ?
5. How many are pouring stations?
6. What is the capacity of your electric furnace? How many stoves are there together?
7. How many tons of molten iron in one hour?
8. What is the weight of a box casting?
9. Please provide the factory layout , after comfriming all detail message , we will design it according to your drawing.
10. Or you can tell us your Budget.
