3 Spindles CNC Engraver and Cutter

Product Description

CNC Engraving and Cutting Machine

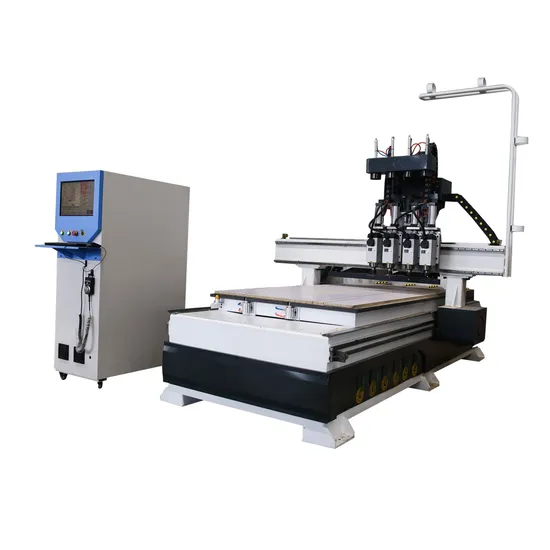

Four spindles CNC Engraving and Cutting Machine

Model	NM-A4
Working area	1220mm*2800mm
Spindle power	6KW *4
Vacuum pump	5.5KW / 7.5KW
Controller	Taiwan Syntec /NC studio
Motor	Servo motor 1.5KW
Inverter	7.5KW
Rail	Taiwan Kotai 25mm

Optional Adding double pressure roller
The machine chooses to install double pressure roller, the purpose is to solve the problem of running board caused by deformation when cutting 3-5mm thin plate. Adding pressure roller can prevent running board, easy cutting, and prevent the plate deformed by moisture when cutting. The phenomenon of running the board.
1.Double station
When the double station model is selected, the production efficiency can be improved. When the front station is working, the post-station is labeled, diverted, and changed, and the work is repeated. Both front and rear workstations can process 1220*2440mm standard plates, and can also process 1220*2800mm large plates to meet the demand for cutting large plates such as large ceilings and adapt to market trends.
2. Automatic loading and unloading system
The fully automatic loading and unloading machine can realize on-button automatic feeding, positioning, processing, cutting and other processes, which can reduce the labor of workers while improving production efficiency, and can also add automatic labeling function to further improve efficiency.
Four spindles machine with roller
Features:
*Centralized automatic lubrication system.
*Centralized dust collection control system
*Tool automatic compensation system.
*Automatic backlash preloading mechanism.
*Two Z axes rise and descend mechanism
*High rigidity design.
*Taiwan PMI ball screw and rail guide.
*Taiwan YUAN YI CHANG precise spiral rack transmission.
*Italy HSD auto tool changing high frequency spindle.
*Japan YASKAWA servo motor and driver.
*Taiwan LIMING planetary type reducer.
*Taiwan 9 vertical, 2 horizontal
Package and shippment

---
