2020 Economical CNC Saw Blade Grinding Machines

Product Description

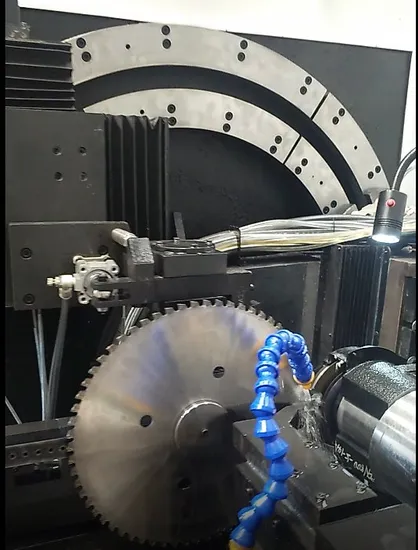

TF 500 CNC controlled Grinding machine for circular saw blade top & face sharpening High-level productivity & precision grinding machine for carbide tools.
High-level productivity & precision grinding machine for carbide tools.
• Saw Dia: 500mm
• Function: Tooth Top/Face angle sharpening
• Precision: <0.02mm
• Model: TF 500
• High precision, more function & more productivity, PURCHASE is cost-effective.
• Cooperation Company
Advantages of Saw Blade Side Grinding Machine • More precision- grinding precision: <0.02mm,be impressed by the higher accuracy. • More efficiency- experienced productivity on a higher level • More user comfort- simplify your work • More flexibility-for precision in any requirement
CNC Control- be flexible to control precision as requirement. 3-D Graphics Grinding Machine Technical Premeter

Saw Blade Diameter	110~510mm
Saw Blade Thickness	0.5~8mm
Top Angle	7°-25°
Chamfer Angle	5°~ -5°
Hook Angle	-5°~28°
Bore Diameter	12~120mm
Pitch	2~65mm
Tip Length	1~15mm
Tip Width	1~10mm
Wheel Diameter	125*32mm*25mm
Wheel Speed	5000r/min
Grinding Speed	3~20mm/s
Power	3KW
Dimensions	1700 *1250 *1820mm
Weight	1200kg

Configuration

Ball Screw	IF (Germany)
Adjust LM Guide	HWIN roller LM guide
Pneumatic Parts	SMC
Servo Motor	Inovance
PLC	OMRON

FAQ 1. How to chooce best saw blade grinding machine? - Best grinding machine process tools with higher precision & long service life. 2. How is the performance of TORSEL saw blade grinding machine? - TORSEL saw blade grinding machine process tool with excellent precision <0.03mm,the service life is upto 7-15 years. 3. Whats your cooperation companys?

---
