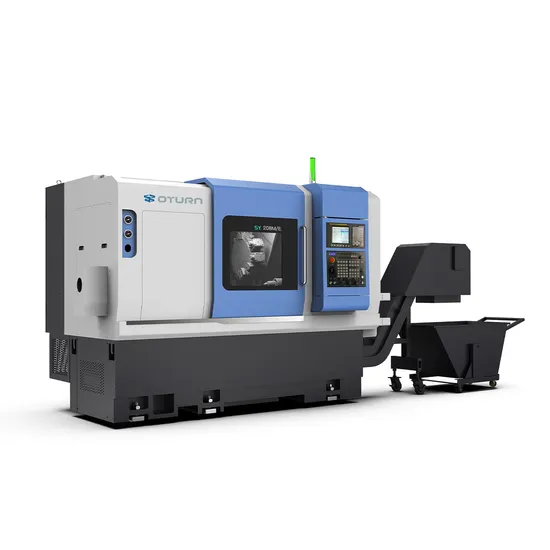

Oturncnc Single Spindle CNC Lathe CNC Turret Lathe Center with A2-6 Spindle

Product Description

Product Description
Discover the ultimate in precision and efficiency with our two-axis lathe. Engineered to process both ends of the workpiece simultaneously in a single clamping, this machine significantly reduces manual operations, amplifies output, and minimizes process complexity. Featuring a second spindle for comprehensive turning and seamless workpiece transfer during machining, it dramatically cuts cycle times. Designed with a 30-degree inclined structure, it boasts exceptional precision, unmatched rigidity, and superior cutting stability. Constructed from high-strength HT300 cast iron using finite element analysis, the one-piece lathe bed guarantees outstanding mechanical rigidity and stability. This ensures long-term reliability, enhanced processing stability, and extended tool life. Our stress-relief treatment further bolsters accuracy stability. The high-strength roller linear rail design and screw pre-tension transmission system enhance rigidity and performance. Coupled with a sleek and modern appearance, this lathe leads the trend in advanced machining solutions.
Main features of this machine tool:
1. Direct drive synchronous electric spindle: Featuring a magnetic ring incremental encoder (sine and cosine) with positioning accuracy of 20 arc seconds and C-axis indexing accuracy of 40 arc seconds, this spindle effectively eliminates vibration. With a nose deflection accuracy within 0.002MM, it improves workpiece surface finish. The rear-mounted rotor simplifies installation and maintenance, while the spindle motor's cooling system suppresses thermal displacement, ensuring a consistent operating temperature. Undergoing rigorous dynamic balance testing, the spindle system retains high accuracy, rigidity, and efficiency, capable of both fine finishing and heavy-duty rough machining. Perfect for mass production of intricate shapes and high-smoothness products.
2. High rigidity servo power turret: This integrated design enhances rapid and precise tool changing, combined with high-speed power axis milling for superior turning and milling capabilities. Equipped with a high-rigidity BMT installation interface and driven by a servo spindle motor, this turret guarantees exceptional performance.
3. Precision roller linear guides and ball screws: Heat-treated and precision-ground, these components ensure maximum accuracy and durability. Each axis features a direct transfer structure and double-anchor pre-relay method to minimize thermal displacement, significantly boosting processing accuracy. The robust, large-sized, heavy-duty linear guides maintain accuracy even under impact, ensuring smooth, low-noise operation, and extended service life.
4. Complete hydraulic and lubrication system: Featuring high-quality hydraulic pumps, valves, and components, this system significantly reduces failure rates. Designed for simplicity and reliability, it ensures seamless operation.
5. Advanced Taiwan rotary chuck cylinder and optional automatic chip removal device: These features minimize operator labor intensity, ensuring safe, efficient production. Programmable and controllable, these components can be customized to meet specific user requirements.special fixture.
Product Parameters

Name	Unit	208M/E
Max. swing diameter over bed	mm	Φ680
Max. processing diameter	mm	Φ450
Max. processing diameter on the tool holder	mm	Φ300
Max. processing length	mm	450
Distance between centers	mm	600
Spindle nose	type	A2-6
Max. Spindle speed	rpm	4300
Oil cylinde/chuck	lnch	8″
Spindle bore diameter	mm	Φ65
Bar diameter	mm	Φ52
DD spindle motor power	kw	18/22kw
Spindle torque	N.m	105-227
X/Z travel	mm	240/450
X/Z axis linear guide specification	spes	35/35 roller
X/Z motor power	Kw	2.9
X/Z positioning accuracy	mm	±0.005
X/Z repeatability	mm	±0.003
X/Z axis moving fast	m/min	20/20
Power turret type	mm/pcs	BMT55-12T
Power turret power	Kw	5
Max. speed of power tool holder	rpm	5000
Outer diameter tool holder specification	mm	25X25
Inner diameter tool holder specification	mm	Φ40
Adjacent tool change time	sec	0.2
Programmable hydraulic tailstock	/	Programmable
Max. stroke of tailstock	Mm	440
Sleeve diameter	mm	Φ100
Sleeve travel	mm	100
Tailstock sleeve taper hole	type	Mohs 5#
Machine size	mm	2600x2100x1800
Machine weight	kg	5200
Cutting fluid tank volume	L	150
Cutting water pump	Kw	0.75
Hydraulic unit box volume	L	40
Hydraulic pump motor power	kw	1.5
Lubricant tank volume	L	2
Automatic lubrication pump motor power	W	50

Products Configurations
Company Profile

Quality Control
Our Advantages
FAQ
Q1: How can I choose the most suitable machines?
To assist you in selecting the most appropriate model, kindly provide us with your specifications. We can recommend the best model for you. Alternatively, you can specify the exact model, or send us the product drawings, and we will ensure you get the machine that best suits your needs.
Q2: What are the main products of your company?
Our expertise lies in a diverse range of machinery including CNC Lathe Machines, CNC Milling Machines, CNC Turning Machines, Vertical Machining Centers, Horizontal Machining Centers, and Lathe Machines. We also specialize in turning and milling composite processing among many other sophisticated machines.
Q3: Where is your factory located? How can I visit there?
We operate five state-of-the-art factories situated in Guangzhou, Quzhou, Ningbo, and Guangdong. You are warmly invited to visit us and witness our advanced facilities.
Q4: How do you handle transportation?
We offer comprehensive transportation solutions including DDP, CIF, FOB, and FCA to suit your logistical needs.
Q5: What are the payment terms?
Our payment terms are straightforward: 30% initial payment upon order confirmation and the remaining 70% balance before shipment via T/T.
Q6: What is the Minimum Order Quantity (MOQ)?
A: The MOQ is 1 set. For some low-cost machines, the MOQ may be more than 1 set.
We would like to know:
1. For an accurate recommendation, we strongly advise you to provide the size and material of your workpiece, and if possible, share the workpiece drawing for our evaluation. This helps us in suggesting the most suitable model for your needs!
2. If you require a CIF price, kindly inform us of the port of destination for a precise quotation.

---
