Product Details
Product Description
Product Description

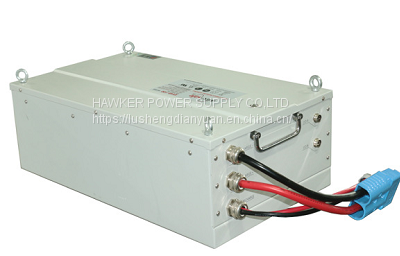

HAWKER HUOKE EV24-100 25.6V100AH BATTERY
HAWKER POWER SUPPLY CO, LTD
Hawke Power Supply Co., Ltd
Tel.: 182 1045 0914 (Marketing Director: Wang Zelong)
Email: hawker_ china
We will provide professional solutions and quotations for each AGV demand.
Hawke Power Supply cooperates with the designated dealers to create a harmonious business channel and provide customers with safe consumption guarantee. If you want to confirm whether a company has the distribution right of HOKE, just enter the number after HAWKER on the letter of authorization to inquire or call directly:+86 182 1045 0914
HOKE 24V, 48V lithium iron phosphate battery
Nominal voltage: 24V/48V Nominal capacity: 20-200AH Operating temperature: charging 0~45 ℃, discharging - 20~60 ℃ Application fields: AGV, mobile robots, industrial machinery and equipment, emergency power supply, etc
Ordering model Nominal voltage (V) Capacity (Ah) Size
(mm) Weight
(Kg)
Hawke EV24-30 25.6V 30 390 * 199 * 130 9
Hawke EV24-40 1.0 25.6V 40 315 * 237 * 165 17.5
Hawke EV24-40 2.0 25.6V 40 527 * 155 * 170 17.5
Hawke EV24-60 1.0 25.6 60 333 * 241 * 214 25
Hawke EV24-60 2.0 25.6 60 325 * 237 * 187 25
Hawke EV24-80 25.6 80 356 * 335 * 216 29
Hawke EV24-100 25.6 100 356 * 335 * 216 34
Hawke EV24-120 25.6 120 400 * 275 * 248 41.5
Hawke EV24-200 25.6 200 551 * 210 * 433 65
Hawke EV48-20 48 20 315 * 237 * 165 17.5
Hawke EV48-30 48 30 380 * 238 * 202 21.4
HAWKER HUOKE EV24-100 25.6V100AH BATTERY
Hawke EV48-40 48 40 356 * 335 * 216 32
Hawke EV48-50 48 50 788 * 170 * 170 36
Hawke EV48-60 1.0 48 60 567 * 241 * 226 40
Hawke EV48-60 2.0 48 60 430 * 350 * 216 40
Hawke EV48-100 48 100 614 * 346 * 202 65
Hawke EV48-160 48 160 606 * 456 * 255 86.5
Hawke EV48-180 48 180 600 * 275 * 517 95
Hawke EV48-200 48 200 700 * 555 * 294 130
The battery specification can be customized. For more information, contact Wang Zelong of HOK Battery
Battery type: lithium iron phosphate battery
Maximum charging current: 2C
Maximum discharge current: 2C
Instantaneous discharge current: 3C
Discharge cut-off voltage: 23.6V/43.5V
Charging temperature: 0~45 ℃
Discharge temperature: - 20 ～ 60 ℃
Storage temperature: - 20 ～ 60 ℃
Temperature protection: 65 ℃± 5 ℃
Battery shell: sheet metal shell
Port design: different ports
HAWKER HUOKE EV24-100 25.6V100AH BATTERY
Lithium battery protection: short circuit protection, overcharge protection, over discharge protection, over-current protection, temperature protection, etc
Communication interface: 485, CANOPEN, CAN, AO (0-5V represents 0-100%), DO (2-way), DI, etc
Application fields: AGV, mobile robots, industrial machinery and equipment, emergency power supply, etc
Product features
Fast charging: support 2C fast charging, which can be fully charged in half an hour at most.
Dummy proof plug: different plug specifications are used for charging and discharging to avoid incorrect insertion.
Port design: charging and discharging different port design, supporting charging and discharging without disturbing each other.
Self developed BMS:
Battery management system for mobile robots, with rich communication interfaces.
It can realize the function of fault data record, storage and export.
Very low power consumption design of control system. Power off state 30uA, power on state 30mA
Support various non-standard function customization.
Environmental protection and long service life: the car grade power lithium iron phosphate battery cell is adopted, with high cycle life, which conforms to the value concept of low-carbon, energy saving and environmental protection;
Professional design: through the design of shockproof structure filled inside the cold-rolled sheet metal shell, the requirements of strong heat dissipation, high safety and high reliability are met.
HOKE 72V, 96V lithium iron phosphate battery
Nominal voltage: 72V/96V Nominal capacity: 20-1000AH Operating temperature: charging 0~45 ℃, discharging - 20~60 ℃ Application field: industrial special equipment
Ordering model Nominal voltage (V) Capacity (Ah) Size
(mm) Weight
(Kg)
EV72-86-L 73.6 86 750*380*252 250
EV72-206-L 73.6 206 850*450*340 550
EV72-618 73.6 618 797*714*368 630
EV96-412 96 412 1590*500*500 550
EV 96-206 96 206 602*400*462 300
EV96-277 96 277 1100*500*290 277
The battery specification can be customized. For more information, contact Wang Zelong of HOK Battery
Battery type: lithium iron phosphate battery
Maximum charging current: 1C
Maximum discharge current: 2C
Instantaneous discharge current: 3C
Discharge cut-off voltage: 66.7V/87V
Upper limit voltage of charging: 84V/109.5V
Charging temperature: 0~45 ℃
Discharge temperature: - 20 ～ 60 ℃
Storage temperature: - 20 ～ 60 ℃
Temperature protection: 65 ℃± 5 ℃
Battery shell: sheet metal shell
Port design: different ports
Lithium battery protection: short circuit protection, overcharge protection, over discharge protection, over-current protection, temperature protection, etc
Communication interface: 485, CANOPEN, CAN, AO (0-5V represents 0-100%), DO (2-way), DI, etc
Application fields: AGV, mobile robots, industrial machinery and equipment, emergency power supply, etc
Product features
Fast charging: support 2C fast charging, which can be fully charged in half an hour at most.
Port design: charging and discharging different port design, supporting charging and discharging without disturbing each other.
Self developed BMS:
Battery management system for mobile robots, with rich communication interfaces.
It can realize the function of fault data record, storage and export.
Very low power consumption design of control system. Power off state 30uA, power on state 30mA
Support various non-standard function customization.
Environmental protection and long service life: the car grade power lithium iron phosphate battery cell is adopted, with high cycle life, which conforms to the value concept of low-carbon, energy saving and environmental protection;
Professional design: through the design of shockproof structure filled inside the cold-rolled sheet metal shell, the requirements of strong heat dissipation, high safety and high reliability are met.
HOKE 100-1000V lithium iron phosphate battery
Nominal voltage: 100-1000V Customizable nominal capacity: 20-1000AH Operating temperature: 0~45 ℃ for charging, - 20~60 ℃ for discharging Application field: special heavy-duty vehicles
Ordering model Nominal voltage (V) Capacity (Ah) Size
(mm) Weight
(Kg)
EV540-271 537.6 271 2900 × one thousand four hundred and ten × 278 2000
EV540-456 537.6 456 3350 × one thousand five hundred and eighty-three × 748 3200
EV540-516 537.6 516 3350 × one thousand four hundred and forty × 755 3600
EV540-618 537.6 618 2980 × one thousand five hundred and eighty-three × 840 4300
EV500-300AH 492.8 300 1500*1100*1050 2000
