QC12K CNC Cutting Machine Swing Beam Shearing Machine for Sheet Metal Cutting

Product Description

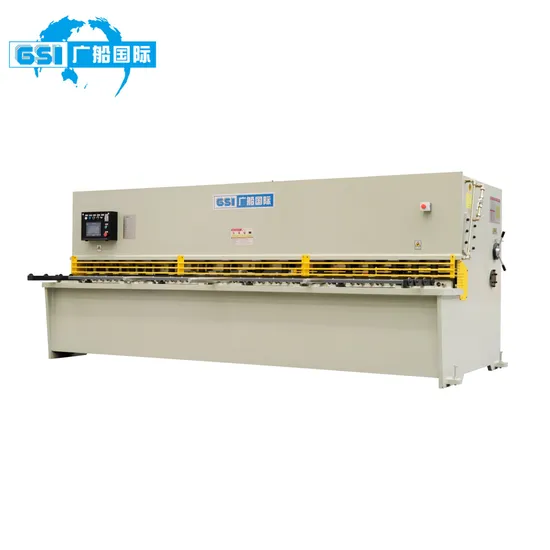

Product DescriptionQC12K-6X4000 CNC Hydraulic Swing Beam Shearing Machine
Product Details
Frame
The frame is a welded steel plate frame structure with good rigidity.
There is a blade micro adjustment device on the workbench, which is convenient for adjusting the gap uniformity between the upper and lower blades.
The workbench is also equipped with a feeding table, which is easy to operate.GSI CNC system
lt is equipped with standard GSI plate shearing machine dedicated CNC system, with high precision and easy to useBall Screw and Linear Guideway
Overturned traditional sliding friction and changed to rolling friction, with a friction coefficient of only about 1/50 of sliding friction, which can reduce driving torque, improve transmission efficiency, and ensure positioning accuracy.Reliable Electro Cabinet
All electrical components are reliable and labeled accordingly;
All wires are marked with wire numbers by using PVC pipes.
Servo Motor for Back Gauge Work Bench Travel Switch
Main Technical Parameters of QC12K Series CNC Hydraulic Pendulum Shearing Machine Check out the main technical parameters of our CNC hydraulic pendulum shearing machine, designed for efficient sheet metal cutting. With advanced CNC technology and hydraulic power, this machine ensures precise and smooth cuts for various metal cutting applications.

No	Model	Max. plate thickness (mm)	Max. plate length (mm)	Max. angle of plate ( °)	Back gauge operating range (mm)	Strokes (n/min)	Main Motor Power (kW)	Overall dimension			Weight (kg)
								L(mm)	W(mm)	H(mm)
1	QC12K-6×2500	6	2500	1.5	20~750	15	7.5	3150	2050	1900	5800
2	QC12K-6×320	6	3200	1.5	20~750	13	7.5	3850	2100	1900	7100
3	QC12K-6×4000	6	4000	1.5	20~750	10	7.5	4650	2150	1930	8500
4	QC12K-8×2500	8	2500	1.5	20~750	12	11	3150	2000	1900	6800
5	QC12K-8×3200	8	3200	1.5	20~750	10	11	3880	2100	1950	8500
6	QC12K-8×4000	8	4000	1.5	20~750	8	11	4680	2250	1950	9700
7	QC12K-12×2500	12	2500	2	20~1000	12	18.5	3200	2400	2300	10000
8	QC12K-12×3200	12	3200	2	20~1000	10	18.5	4000	2500	2400	12000
9	QC12K-12×4000	12	4000	2	20~1000	8	18.5	4800	2550	2450	16000

View our wide range of products including the CNC Hydraulic Shearing Machine for Sheet Metal. This machine is perfect for precise and efficient cutting of sheet metal.https://gsi--tfm.en.made-in-china.com/product-list-1.htmlCompany ProfileGuangdong GSI Elevator Electromechanical Equipment Company Limited started to introduce international technology since 1983 and produce hydraulic plate shears, hydraulic press brake and grooving machines. In China, it is one of the earliest enterprises to produce hydraulic plate shears and hydraulic press brake. After more than 40 years of technology development, improvement and innovation, more than 100 patented technologies have been obtained, with the technical level of the products continuously improving. And the products have been exported to all over the world.
Workshop ViewOur Equipment
Our TeamQualifications and Honors
Technology Research and Development
Shipment and DeliveryFAQ1. Q: Are you a factory or a trading company?
A: Guangdong GSI Elevator Electromechanical Equipment Ltd is committed to the R&D, production and sales of press brake, shearing machine, grooving machine and elevator.
2. Q: How to get a accurate quotation from you ?
A: Please provide us with details of material and the max length you need.You can also send us the workpiece drawing ,and we will choose the most suitable machine and quote for you.
3. Q: What's the payment terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment.
4. Q: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
5. Q: Can you provide customized machine and tool?
A: Yes,we can design and manufacture according to your specific requirements.
6. Q: How do you guarantee your quality?
A: GSI have nearly 40 years of manufacturing experience. We are one of the earlist domestic enterprises producing hydraulic press brake and hydraulic shearing machine. We have more than 100 patented technologies and pass ISO9001:2015 quality management system. Our products have been exported to all over the word.
7. Q: Where is your factory located? How can I visit there?
A : Our factory is located in Zhongshan City ,Guandong Province, China. You could take train to Zhongshan railway station or Nanlang railway station, and then we could pick you up to our fatory from railway station. You are warmly welcomed to visit us.

---
