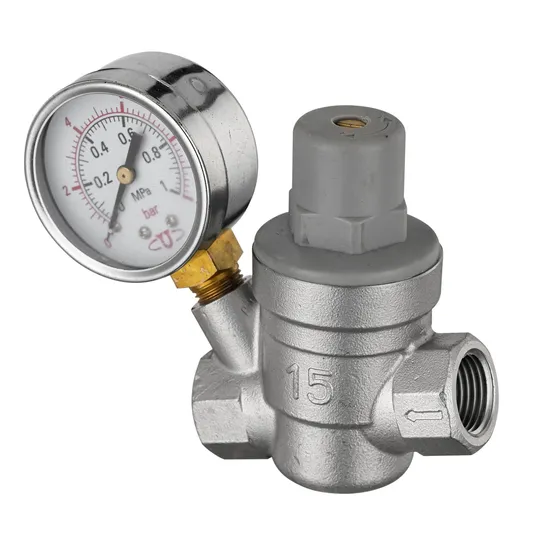

Water Pressure Regulator with NBR, EPDM and FKM Seal Materials

Product Description

It is direct operated and automatic pressure regulating valve used widely for various kinds of industry fields. Pressure reducing
Features:
1) Sensitive reduction pressure, steady outlet pressure
2) With strainer
3) Pressure gauge can be installed according to users' request. Checking pressure value, regulating valve conveniently and accurately
4) Compact construction, light weight and small volume
Specifications:
1) Inlet pressure range: 1 - 16bar
2) Outlet pressure range: 1 - 6bar
3) Max. Pressure reduction ratio inlet to outlet pressure: 6: 1
4) Diameter: 15 - 50mm
5) Medium: Water
6) Medium temperature: 0 - 65C
7) With optional pressure gauge
8) Body materials: Stainless steel or brass
Size:

Orifice size (mm)	15		20	25
Port size(BSP,NPT)	Female thread 1/2"		Female thread 3/4"	Female thread 1"	Male thread 1-1/4
Valve body	Brass or S.S	Brass or S.S		S.S or brass	Brass
Fluid	Water, compressed air
Fluid Temp. (C)	≤65
Max. inlet pressure P1 (bar)	16
Outlet pressure range P2 (bar)	1~6
Max. reducing rate P1: P2	6:1
Flow rate (Kv)	See flow rate drawing

---
