CD6250b High Speed Parallel Flat Bed Brand New Lathe Machines From China

Product Description

CD6250B High Speed Parallel Flat Bed Brand New Lathe Machines From China
Product Application
CDB SERIES LARGE SPINDLE HOLE PRECISION LATHE:
Large spindle bore of 65mm
Main spindle dynamic balanced, and supported at 2 points with taper roller bearings of Harbinbrand
Outward appearance featuring large plains, making the machine more good-looking
Gapped bed ways, which are super-audio frequency hardened
All gears hardened and ground by Reishauer grinding machine
Leadscrew and feed rod interlocked, both with overload protection
Automatic feed stopper
Configuration variable totally according to orders:
Metric or inch system; Right or left hand wheel; Large plane type; Halogen lamp; Quick change tool past; DRO; T-slot compound;
Chuck guard; Leadscrew hood; Rapid traverse motor; Electromagnetic brake; Forced lubrication
system.
Product main technical parameters:

MODEL		CD6236B	CD6240B	CD6250B	CD6260B
CAPACITIES	Max. swing over bed (mm)	360	400	500	600
	Max. swing over cross slide	185	225	325	360
	Center distance (mm)	1000, 1500, 2000mm
	Max swing in gap (mm)	490	530	630	730
	Valid length of gap	260mm
	Bed width	330mm
HEADSTOCK	Spindle hole	65mm
	Spindle nose	ISO-C6 or ISO-D6
	Spindle taper	Metric 70mm
	Spindle speeds (Number)	22-1800rpm (15 steps)
FEEDS	Metric threads range (Kinds)	0.5-28mm (66kinds)
	Inch Threads range (Kinds)	1-56 /inch(66kinds)
	Module threads range (Kinds)	0.5-3.5mm (33kinds)
	Diametral threads range (Kinds)	8-56 DP(33kinds)
	Longitudinal fees range (Kinds)	0.072-4.038mm/rev(0.0027-0.15 inch/rev) (66kinds)
	Cross feeds range (Kinds)	0.036-2.019mm/rev(0.0013-0.075 inch/rev) (66kinds)
	Rapid traveling speed of carriage	5m/min (16.4ft/min)
	Leadscrew size: Diameter/Pitch	35mm/6mm
CARRIAGE	Cross slide travel	300mm
	Compound rest travel	130mm
	Cross-section size of toolshank	20*20mm	25*20mm		25*25mm
TAILSTOCK	Taper of tailstock sleeve	Morse No.5
	Diameter of tailstock sleeve	65mm
	Travel of tailstock sleeve	120mm
MOTOR	Main drive motor	4.0kw or 5.5kw or 7.5kw			7.5kw
	Coolant pump motor	0.125kw
	Rapid traverse motor	0.12kw

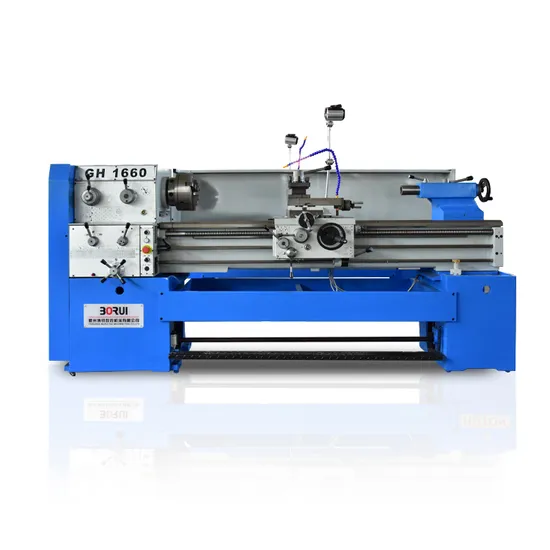

Product Details
Packing Shipping
For machine: usually by sea;
For documents: by international express, eg. DHL,TNT or EMS.
For packing :Free fumigation plywood packaging steel base
Our Service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have
Company Information
Since 1996,20 years' history for machine tool manufacturing
10 years' history for export
Total 2 manufacturing bases in china
Sino-germany technology cooperation
Production of 8 categories, more than 130 kinds of products
Set up design&research center at TAIWAN
Exported to total 48 countries in the world covered most areas
One-stop shopping for nearly all other types' machine tools
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.

---
