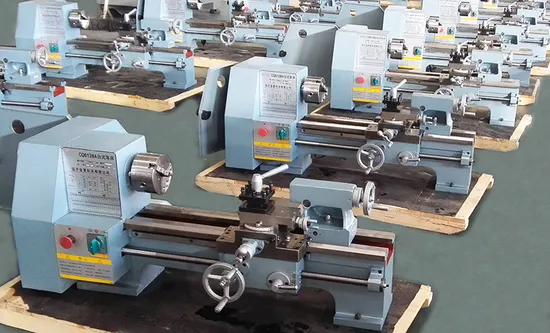

Small Lathe Machine

Product Description

	item	specification
1	Max. swing dia. over bed	280mm
2	Max. turning dia. of workpiece	155mm
3	Distance between centers	500mm
4	Bed form	flat
5	Middle pallet
6	Max.X stroke	280mm(hard guide)
7	Max.Z stroke	400mm
8	Rapid feed X/Z
9	X/Z motor speed
10	Z axis guide width
11	Ball screw X/Z
12	Spindle speed	180-1930/8RPM has middle pulley reduction device and can achive the big torque at low speed
13	Spindle nose
14	Spindle bore	28MM
15	Power of main motor	0.75KW(380)
16	Spindle clamp	5 inch chuck
17	Chuck bore
18	Tool holder	MANUAL
19	Number of tool holders	4
20	Standard blade size	16×16mm
21	Maximum boring tool diameter
22	Tailstock stroke	300
23	Tailstock diameter	40
24	Tailstock Mandrel stroke
25	Tailstock taper
26	positioning accuracy X/Z
27	repositioning accuracy X/Z
28	Overall dimensions of machine	1260x660x485mm
29	Case dimensions of machine	1330x660x610mm
30	Net weight /gross weight of the machine	200/240kg

Shandong Linyi Golden Star Machine Tool Co., Ltd.the original linyi machine tool plant, founded in 1965, is a research and development, production and manufacturing mechatronics CNC machine tool products and characteristics of export products for the main business of state-level high-tech enterprises, with annual production of CNC lathe, vertical machining centers, CNC milling machine, engine lathe, multi-purpose machine, surface grinding machine, etc. The comprehensive production capacity of more than Taiwan. The company has passed THE ISO9001 international quality system certification, and enjoys the right to import and export. It is a patent star enterprise in Shandong Province, with provincial enterprise technology center, provincial one enterprise one technology RESEARCH and development center, municipal engineering technology research center and key laboratory of high-grade CNC machine tool enterprises.
The company is the professional and technical personnel education base in Shandong Province, with 32 scientific research personnel, one expert with outstanding contribution and six senior titles enjoying the special allowance of The State Council. At present, the company has 24 national patents and 5 software Copyrights. Presided over the formulation of JBCPZT1319-2019 CNC double-head vehicle industry standard, and participated in the formulation of JB/T8326 CNC Instrument Horizontal Lathe industry standard.

---
