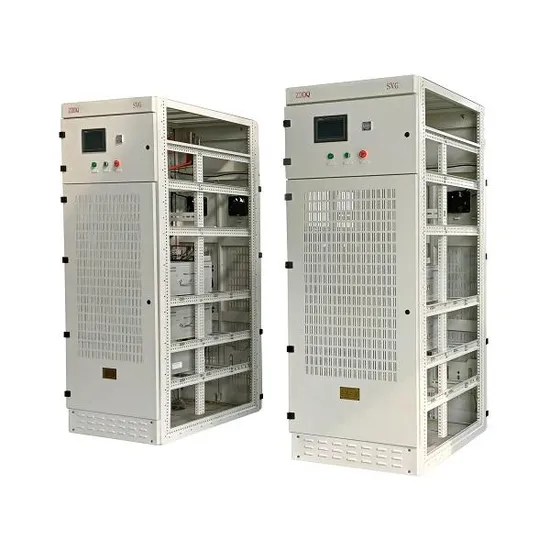

Svg Static Var Generator Power Factor Correction Panel Board Device

Product Description

Model Number ZD-APF/SVG
Product Name Static Var Generator SVG
Rated Voltage low voltage
Rated Frequency 50Hz/60Hz
Power factor effect ≥0.98
Phase 3 phase 4 wire
Rated Capacity 30~1000kvar
Response time <5ms
Altitude 1000m
Certificate ISO9001,IEC
Key Words SVG static var generator
Packaging and delivery Packaging Details durable wooden case with pallet for svg
We insists on customers' demand as the guide, with the technology innovation as the drive, through 20 years technology accumulation, has already owned a series of power quality products including: Low voltage Active Power Filter APF Low voltage Static Var Generator SVG Medium voltage STATCOM Low voltage Capacitor Banks Medium voltage Capacitor Banks Which are widely used in many countries and industries such as power grid, hospital, sewage plant, railway, subway, airport, seaport, oil and chemical industry, metallurgy, coal mine, tele-communication and high buildings. Our products has been installed in Australia, EU, Asia, South America and Africa.
Products Description Static Var Generator/SVG/STATCOM Static var generator/SVG/STATCOM is the new standard in reactive energy compensation. This power electronic current source is the accurate and highly reliable solution for today's networks characterised by significant increase in harmonics, voltage variations caused by intermittent renewable sources connected to the network and voltage level due to the smart grid development. The DSP controlled IGBT topology enables a perfect compensation on each phase for both inductive and capacitive loads. It also correct phase unbalance where necessary. Immune to harmonics, resonance and voltage level, it offers a maintenance free solution reusable in any network configuration. Rack mount type SVG module
Interface of SVG Module
SVG Principle Static var generator/SVG/STATCOM (SVG for short), based on voltage type inverter principle, uses the isolated gate binary transistor (IGBT) to control the value and phase of AC voltage of inverter, so as to serve the purpose of reactive and harmonic compensation. As the switching frequency of IGBT is very high (dozens of kHz), SVG can realize fast compensation for reactive load, and achieve very high compensation precision. SVG is currently the best solution in reactive power control filed. Compared with the traditional SVC represented by TSC, the regulation speed of SVG is faster (the response speed is within 5ms), its compensation precision is high (the power factor after compensation is over 0.99), the compensation method is flexible (SVG can compensate both inductive reactive power and capacitive reactive power), and SVG also has the function of active filtration of harmonic current. Specification

Electrical properties	Rated voltage		220/400V/600VAC
	Operating frequency		50Hz/60Hz
	Electrical connection		Three-phase Four-wire
	Capacity of whole cabinet		30~1000kvar
	Compensation mode		Stepless compensate both inductive and capacitive power
	Compensation effect		≥0.99
	SVG module response time		<5ms
	Active loss of system		<3%
	Number of units connected in parallel		≤10 units
	MTBT		>100,000 hours
Control characteristics	Controller		DSP+FPGA
	Switching frequency		12.8K
	Capacitor control interface		14 ways
	Communication mode		Adopt Modbus remote
	Control connection		Fiber or electrical
Structural characteristics	Weight		Refer to the model
	Level of protection		IP20
	Cooling method		Air cooling
	Noise		<50db
	Installation method		Cabinet mounting
Environmental requirements	Ambient temperature		-20~55ºC
	Relative humidity		Maximum 95%, without
	Altitude above sea level		≤2,000m

Main Function Multifunctional: Reactive power and imbalance compensation Excellent reactive compensation: High speed, Precise (-0.99≤Cosφ≤0.99), Step-less, Bi-directional (capacitive and inductive) compensation Excellent imbalance correction: Both negative and zero sequence, mitigates neutral current Wide input voltage & frequency range, adapts to tough electrical environment Low thermal loss (≤3% of rated SVG capacity), efficiency ≥ 97% High stability: Infinite impedance to grid, avoids harmonic resonance problem Flexible application: Modular design, embedded in standard or customized cabinet Easy installation and maintenance: Easy installation for SVG module replacement and expansion Wide capacity range: 50kvar~600kvar for a single cabinet, up to 10 cabinets in parallel Environmental adaptability: -10~50°C temperature, compatible with diesel generators Complete protection: Grid over/under voltage, SVG over current, over temperature, and others. All faults recorded inevent log, convenient for failure analysis.

Applied Type	Connection Type	Model	Rated Voltage	Rated Capacity
SVG Module	Three-phase four-wire	ZD-SVGM/35-4-4L-R	208V 400V 690V	35kvar
		ZD-SVGM/50-4-4L-R	208V 400V 690V	50kvar
		ZD-SVGM/75-4-4L-R	208V 400V 690V	75kvar
		ZD-SVGM/100-4-4L-R	208V 400V 690V	100kvar

---
