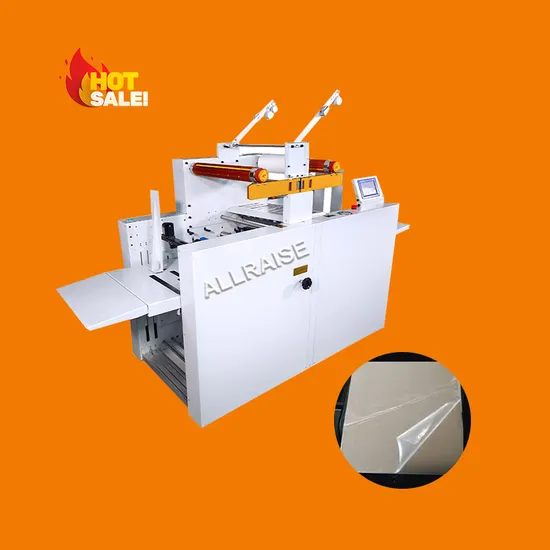

Factory Price Electric 540mm Width Paper BOPP Film Lamination Machine Automatic Hydraulic Feeding Laminator Laminating Machine

Product Description

Product Description
Articles storage function:The machine for the split mainmachine add bottom cabinet,easy to place articles.Machineplacement function:there is a universal wheel at thebottom,easy to move.Operation function:Capacitive touchscreen,easy to understand.
Section function:with breaking function,no need to set thelength of paperautomatic section and small oise.Anti-rollfunction:in the process of laminating,very simple to adjustthe paper crimp.
Film cutting function:equipped with fim cuting knife,can beadjusted according to the needs ofguests when the filmwidth,Paper receiving function:The rear is equipped withlifting paper receiving platform,and can collect paperheightreach to 520mm. Product Parameters

Machine name	Factory Price Paper BOPP Film Lamination Machine Automatic Feeding Laminating Machine
Model	OR-540B
Work mode	Single side
Heating mode	Steel roll
Roll diameter	176mm
Coating temperature	60-120ºC
Film thickness	157-400g
Membrane core diameter	3 in
Heating time	5-10min
Film coveringspeed	0-15M/min
Max film width	540mm
Display mode	Capacitive touch screen
Control mode	Electronic temperature control
Pressurization mode	Hydraulic pressure
Paper feed mode	Automatic feed
Automatic paper collection function	Automatic collect
Automatic tension function	Have
Dashed line function	Perforating knife
Crimp prevention function	Gravity stretch anti-crimp design
Trimming function	Automatic trimming
Electric current	12A
Voltage	220-240V
HZ	50-60HZ
Humidity	20%-80%
Net weight	Laminator;327kg
Gross weight	Laminator;348kg
Packing dimension	1250*950*1050mm

Detailed Photos

---
