Fault Passage Indicator with SCADA

Product Details

Product Description

Product Description
Fault Passage Indicator with SCADA

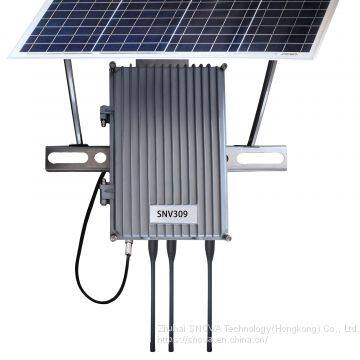

SNV309 Remote communication terminal
Instruction Manual
NOTE: THE BELOW INTROUCE USE FOR “ GSM MOBILE PHONE VERSION” AND “GPRS WEB SERVICE VERSION”, “ GSM /GPS MOBILE PHONE VERSION” AND “GPRS/GPS WEB SERVICE VERSION”, READER CHOOSE TO READ ACCORDING YOUR PURCHASE REQUIREMENT!!!!
Description
SNV series overhead type Fault Indicator system is based on the Sensor that through CT get the (10KV-50KV) line’s current signal, through smart computer chip by program calculating, Analysis ,judge the short circuit or ground fault. When Sensor detect the fault happen, then the Fault indicator warn the manager through turn red flag, and shine red led. It is good for power managing user to find the fault happen reason and place, then fast solve the problem and make the power restore.
SNV Fault Indicator with the aid of the professional control terminal equipment and Web server, it can achieve to remote read and manage the Fault indicator state on times.
There are two channels for reading and managing the remote fault indicators. One is through GSM mobile phone SMS command control. Second is user computer software control. Power managing user, can get the fault indicator information on times
Working principle and structure
Include:
One: Fault indicator sensor
Type：SNV308 Indicator
Two: Setting Controller(PDA)
Type: SNV306-Remote control PDA
Three: Control Terminal
Type: SNV309-communication terminal RTU
Four: Software system
Type ：SNV10000 Software APP

---
