China Uni-T 805A Auto Range Mini Desktop Digital Multimeters Price

US$120.00-350.00 1 Piece (MOQ)

Basic Info.

Model NO.
UT805A
Installation
Portable
Display Mode
Digital
Accuracy
±0.025%
Theory
Electronic Meter
Power Source
AC and DC
Connection Type
RS-232
Maximum Scale
19999
Range Conversion Type
AUTO/MAN RANGZ
Additional Measuring Item
Frequency
Display
LCD
Model
Ut805A
Power
AC 220V/50Hz
LCD Size
128mm × 28mm
Product Colour
Red and Grey
Product Net Weight
3.2 Kg
Product Size
300mm × 245mm × 105mm
Standard Individual Packing
Gift Box, English Manual
Standard Quantity Per Carton
4 PCS
Standard Carton Measurement
685mm×450mm×315mm
Item
Ut805A Digital Multimeter
Transport Package
Wooden Box with Foam Inside
Specification
CE/ISO/IEC
Trademark
HuaZheng
Origin
Hebei, China
HS Code
9030320000
Production Capacity
100 PCS/Month

Product Description

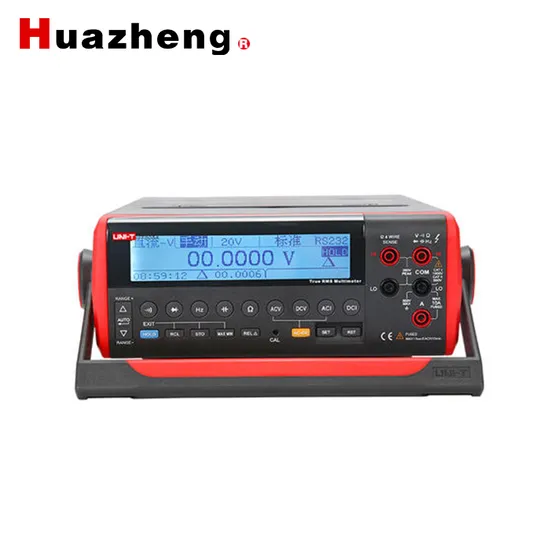

China Uni-t High Quality Auto Range Mini desktop Digital Multimeters
I. Product Description

UT805A is a 200000 count digital bench-type multimeter designed with large-scale integrated analog/digital circuit, micro-processing technology, 24-bit A/D converter, operational amplifier, and True RMS display. UT805A is digitally calibrated to ensure high accuracy and reliability. It's capable to test DC/AC Voltage, current, resistance, diode, circuit continuity, capacitance, and frequency; the memory recall function makes all your tasks easier.
UT805A has RS232C and USB port for easy connection with computer to realize macro recording and monitoring of transient dynamic data.
UT805A complies with IEC61010 standard, CATI 1000V, CATII 600V.
II. Parameter
Specifications Range Best Accuracy
Model UT805A
DC Voltage (V) 200mV/2V/20V/200V/1000V ±(0.015%+3)
AC Voltage (V) 200mV/2V/20V/200V/750V ±(0.2%+100)
DC Current (A) 2mA/200mA/10A ±(0.03%+10)
AC Current (A) 2mA/200mA/10A ±(0.3%+100)
Resistance (Ω) 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ ±(0.02%+6)
Capacitance (F) 6nF/60nF/600nF/6μF/60μF/600μF/6mF ±(2%+5)
Frequency (Hz) 10Hz~60MHz ±(0.1%+3)
Features
Display Count 200000
Auto Range
True RMS
Bandwidth (Hz) 100kHz
Diode
Continuity Buzzer
Data Hold
Relative Mode
MAX/MIN
Data Logging 100
Data Recall
RS-232
USB Interface
LCD Backlight
Dot-matrix Liqid Crystal Display 256×64 Pixels
Setup
Input Protection
Input Impedance for DCV 2V Range: Around 10GΩ, All Other Ranges: Around 10MΩ
Voltage &Current:AC+DC Measurement
General Characteristic
Power AC 220V/50Hz
LCD Size 128mm × 28mm
Product Color Red and Grey
Product Net Weight 3.2 Kg
Product Size 300mm × 245mm × 105mm
Standard Accessories Test Lead, AC 220V Power Cord, RS-232 Interface Cable, USB Interface Cable, PC Software CD, Alligator Clip, Multi-Purpose Socket, Test line
Standard Individual Packing Gift Box, English Manual
Standard Quantity Per Carton 4 PCs
Standard Carton Measurement 685mm×450mm×315mm (0.097 CBM Per Standard Carton)
Standard Carton Gross Weight 19.2 Kg
