| US$80,000.00-96,000.00 | 1 Set (MOQ) |

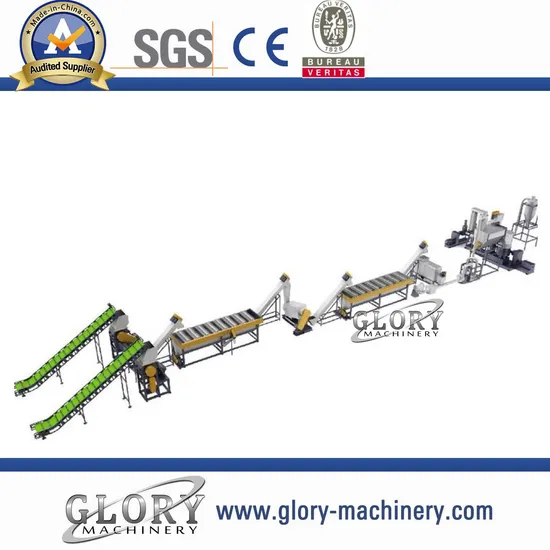

| No. | Name | Technical specifications |
| 1 | Belt conveyor | Waste bottle feeding Width of belt: 475mm Basic material of belt: PVC Motor power: 1.5kw |
| 2 | Bottle label remover | Removing labels from bottles Motor power: 7.5Kw Air blower:3kw Output:500kg/h |
| 3 | Manual sorting belt | Waste bottles conveying Width of belt: 475mm Basic material of belt: PVC Motor power: 1.5Kw |
| 4 | Belt conveyor | Waste bottles feeding Width of belt: 475mm Basic material of belt: PVC Motor power: 1.5Kw |
| 5 | Crusher | Bottle crushing Motor power: 37Kw Diameter of hole of screen sieve:22mm Screen sieve replacement: manual Cover opening: manual we can design the diameter of hole according to customer's requirement Qty. of rotary blades: 6 pc Qty. of stationary blades: 4 pc Basic material of blades: High-quality alloy steel(Cr12MoV) Rotation speed of blade: 600RPM |
| 6 | Screw loader 1 | PET flakes conveyed into high-speed friction washer Motor power: 2.2Kw Part contact with raw materials: stainless steel |
| 7 | Hot washer | This device is connected with steam boiler. Steam is supplied into washing tank to heat water and flakes. Hot water makes dirt, label and glue water loosen from bottles. Meanwhile you need to add caustic soda and other cleaning chemicals into tank to clean bottle body. Motor power:4kw Dimension of hot chamber (Dia.×Height): 1.4M×2M Volume of hot chamber≈3.08 m3 Part contact with raw materials: stainless steel |
| 8 | Screw loader2 | PET flakes conveyed into floating washer Motor power:2.2Kw Part contact with raw materials: stainless steel |
| 9 | High-speed friction washer | Get rid of glue water, dirty waste and oil Motor power: 15Kw Motor power of water pump:1.5kW Rotary speed of screw: 1200Rpm Part contact with raw materials: stainless steel |
| 10 11 | Floating washer | Cleaning flakes and separating most dirt, labels and caps Motor power of screw loader: 4kw Motor power of thumbwheel:0.55KW Motor power of vertical stir:0.55kw Quantity of thumbwheel:3sets Tank dimension:3.9m(L)*1.2M(w)*2m(H) Part contact with raw materials: stainless steel |
| 12 | Centrifugal dryer | Dewatering Motor power: 5.5Kw Screw loader:1.5kw Part contact with raw materials: stainless steel |
| 13 | Pipeline dryer | Hot air drying Heating power: 36Kw Power of blowing motor: 5.5Kw |
| 14 | Packaging system | Storage silo for PET flakes Motor power of loading blower: 4Kw Basic material of storage silo: stainless steel Dimension of silo: 3.5M (H)×1.2M(Dia.) Part contact with raw materials: stainless steel |
| 15 | Electric cabinet | Electric control system for washing line Electric control component: , e.g. Circuit-breaker, AC contact, press button, pilot lamp This electric cabinet is used to control all machines in PET bottle washing line. |
