Product Details
Product Description
Product Description
Features:
1. Adopt double welding path with 5 meter length fiber laser cable, which brings large convenience for your welding job, the double path laser welding machine is suitable for weld large size SS channel letters which can not move easily.
2. Fiber cable is soft, enable laser head electrically move back and forth, up and down, left and right and rotate 360 degree.
3. Heat affected zone is small. The work piece surface of the double path laser welding machine will not deformed.
4. For letters in the advertising industry, there is specially lengthened optical path and the telescopic scope can be added to 800mm.
5. There is no raised spot after welding. No requirement of polishing process. Saving time and labor. The appearance of channel letter welding machine is beautiful and tight.
6. There is CCD monitor. The welding effect of the double path laser welding machine is more clear and intuitive.
7. The double path laser welding machine specially designed long focal distance lens Focus distance is 200mm to meet the demand for ultra-high font welding.
Technical data:

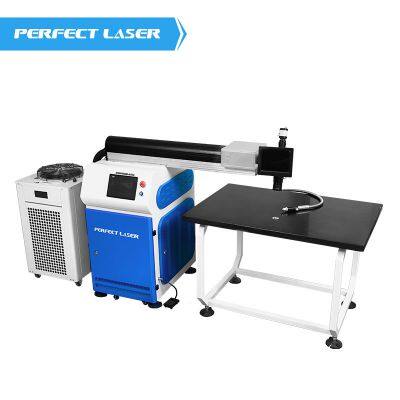

Product Name
| Advertising Letter Laser Welding Machine
with Table and handheld
|
Model
| PE-W500II
|
Laser Medium
| Nd3+:YAG
|
Laser Power
| 500W
|
Laser Wavelength
| 1064nm
|
Pulse Width
| 0.3-20ms
|
Pulse Frequency
| 0.5-40HZ
|
Welding Spot Diameter
| 0.2-2mm
|
Filler Wire Diameter
| 0.1-0.5mm
|
Power Consumption
| 9KW 40A
|
Power Supply
| AC380V+5% Three Phase
|
Operation Interface
| LCD Touch Screen with English
|
Locating System
| CCD screen + red light pointer
|
Cooling Typed
| Water Cooling
|
Standard work table
| 800×1000mm
|
| Laser Lamp | Double Lamp |
| Welding depth for SS | 2mm |
| Welding depth for Aluminum Alloy | | Single Power Energy | 120J |
>>
