100t Bolte Type Fly Ash Cement Powder Silo for Sale Price

Product Description

Vertical cement silo
Horizontal cement silo
Mobile horizontal cement silo
Product Description
1. Brief introduction of our cement silo
Traditionally, we use cement silo to store dry powder material like cement, fly ash etc. It is usually equipped with accessories like filter, level indicator, flow promotion device, safety valve to ensure it works efficiently and environment friendly. Vertical cement silo is a key part of concrete batching plant.

Currently, we can produce 20T to 2000T cement silo in welding type or bolted type. Welding type cement silo is easy to install but inconvenient for transportation; While bolted type cement silo is convenient for transportation but time-consuming for installation.
2. Components of our cement silo
1) Vertical cement silo body which is usually made of carbon steel Q235;
2) Dust collector on the top of cement silo;
3) Safety valve;
4) Inside and outside ladders;
5) Level indicator;
6) Support legs;
7) Load cell on support legs;
8) Penumatic flow promotion device;
9) Manual butterfly valve;
10) Cement feeding pipe.
3. Features of our cement silo
1) Several measures are taken to make sure the cement silo is water-proof. Such as carbon dioxide welding, glass cement etc.
2) Primer and top coat are used to make sure the cement silo surface is antirust;
3) Safety valve is used to protect the cement silo when it is blocked and the inside pressure increases quickly;
4) Cement silo top dust collector is used to protect the environment;
5) Level indicators or load cell are used to let us know the quantity of cement inside cement silo;
6) Pneumatic flow promotion device is used to facilitates the discharging of cement;
7) Inside and outside ladders are equipped to help workers maintain the cement silo.
8) Our new technology can save much shipping space for clients (4 sets100t cement silo can be put into one 40HQ container).
4. Delivery of our cement silo
1) For welding type cement silo, the Max. capacity that can be put into 40HQ container is 50T;
2) For bolted type cement silo, even 2000T cement silo can be put into container;
3) For welding type cement silo, if the capacity is more than 50T, we can use break bulk vessel or flat rack container to deliver it, but the cost is much more expensive than that of the 40HQ.

Product Parameters
Specification of 100t cement silo

Model	100T
Silo Diameter (A)	3,000mm
Silo Body Height (H1)	9,924mm
Silo Cone Height (H2)	2,350mm
Silo Height (H3)	16,274mm
Total Height (H4) (including handrails)	17,274mm
Discharging Height (H5)	4,000mm
Material	Q235
Steel Thickness (from Cone to Top)	5-4-3-3-3-3-3-3mm
Accessories	Dust Collector, safety valve, Handrails, Inside& Outside Ladders, Inlet Tube, Butterfly Valve, Support Legs, Arch Breaking

Detailed Photos
Pictures of our cement silo
1) Welding type cement silo

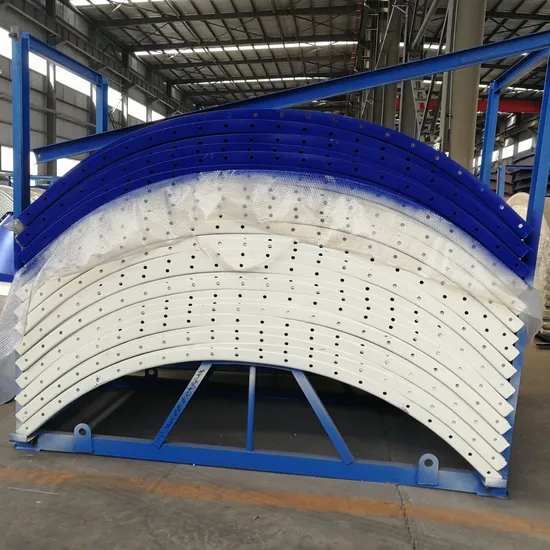

2) Bolted type cement silo
Certifications
CE certificate

---
