US$8,000.00-14,000.00
|
1 Unit
(MOQ)
|
Basic Info.
Certification
ECE, CE, CCC, ISO/TS16949
Types of Suspension Systems
Trailing Arm Type
Self-dumping
Self-dumping
ABS Anti-lock Braking System
ABS Anti-lock Braking System
Transport Package
Roro, Bulk Cargo, Container
Production Capacity
50000 Units/Year
Packaging & Delivery
Package Size
13500.00cm * 2600.00cm * 1500.00cm
Package Gross Weight
8500.000kg
Product Description

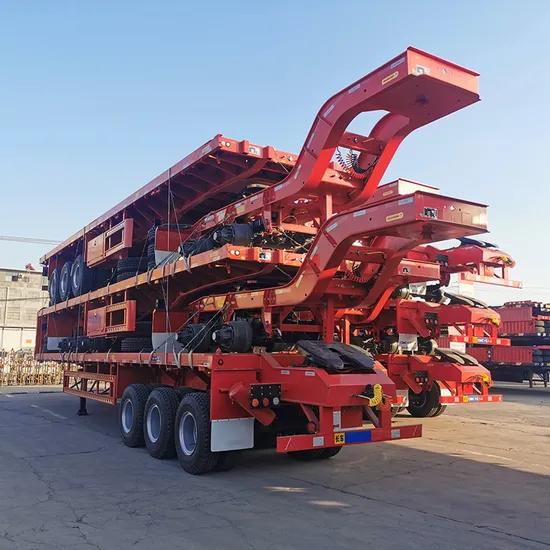

Mongolia Coal Loading Two Flatbed Semitrailer Container Trailer
Double interlink container semi trailer, the unit flatbed semitrailer can load 2X20FT container. This design flatbed is widely used in mongolia for coal transportation.
Product Description
Providing supporting and processing on Semi Trailer
20FT/40FT Container Flatbed Semi Trailer
Dolly Flatbed Semi Trailer
Interlink Flatbed Semi Trailer
Flatbed Wth Front Board Semi Trailer
CKD/SKD situation Available
OEM/ODM acceptable
Product Parameters
| Overview Dimension |
| Front Flatbed Trailer | 13850X2550X1300mm |
| Payload | 75Ton |
| Curb Weight | ~9700kg |
| Middle Dolly Trailer | 5600X2500mm |
| Curb Weight | 4180kg |
| Rear Flatbed Trailer | 12800V2550X1300mm |
| Payload | 75Ton |
| Curb Weight | ~9300kg |
| Customized acceptable |
| Trailer Chasiss | Main Parts | |
| UP Bottom Plate | 18mm 20mm |
| Middle Plate | 12mm |
| Beam Height | 530mm |
| NO. | Item | Quantity | Model |
| 1 | Pin King | 1 | 90 |
| 2 | Saddle | 1 | |
| 3 | landing gear | 1 | 28ton |
| 4 | suspension | 1 | 3 AXLES Widen/Thicken |
| 5 | plate spring | 6 | 10PCS 6stes 120mmX16mm |
| 6 | side beam | | 18# U Steel |
| 7 | main beam | | 12# steel twistlock 8PCS |
| 8 | floor | | 2.5mmcheckered plate |
| 9 | Axle | 3 | 16Ton |
| 10 | Rim | 12 | 9.0 16mm vacuum 12PCS |
| 11 | tire | 12 | 12R22.5-68 vacuum 12PCS |
| 12 | Electric | Wiring/light | 1set | |
| Seven core socket | 1 | ISO |
| 13 | Braking | Valve | 1 | Six |
| Air cylinder | 2 | 40L |
| Double chamber brake sub-chamber | 4 | 30/30 |
| Single chamber brake chamber | 2 | 30 |
| Cylindrical quick plug connector | 1/1 | |
| 14 | spare wheel carrier | 1 | |
| 15 | Tool | 1 | |
The configuration above is standard one for your reference, we can also customize the specification based on our esteem customer's requirement.
Certifications
Packaging & ShippingQingte Group is a diversified enterprise specialize in Special Vehicle, drive axle, trailer axle , and auto parts like gears and casting with the strength of good quality and pretty competitive price. And real estate.
Sincerely hope to establish communication with you for any possible cooperation in the market
Customized special trailers manufacture and Qingte own design trailer export.
Our main trailers including Cargo transport, flatbed, side wall trailer and skeletal semitrailers, Low bed trailer,Tank semitrailers, Modular Trailers (Hydraulic multi axle trailer), SPMT (Self-propelled Modular Transporters),trailer for wind power industry, etc
With rich processing experience and practical expertise, Solid, Durable, and Powerful quality products can be supplied.
We know how to make better bodies for semi-trailers, dumpers, and trucks
