Basic Info.
Machining Process
Hydraulic
Vibrating Amplitude
2.6mm
Certification
ISO9001: 2000, CE
Concrete Pumping Pressure
8MPa
Theoretical Pumping Times
25times/M
Transport Package
Nude Package
Specification
10190*2500*3700 mm
Production Capacity
1000pieces/Year
Packaging & Delivery
Package Size
1020.00cm * 253.00cm * 370.00cm
Package Gross Weight
23000.000kg
Product Description

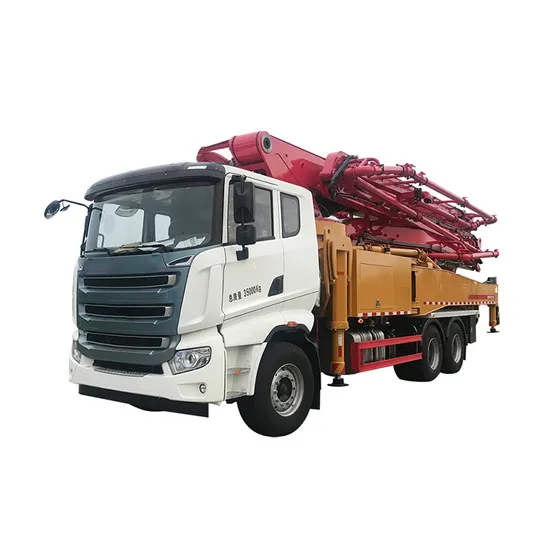

37m Hydraulic Concrete Pump Truck Sym5230thb 370c
Product Description
Energy-saving TechnologyWhen system pressure reaches 12Mpa: No. of stroke reaches 29t/Min. Pump efficiency increases 25%(Max). Diesel consumption decreases 10%.Anti Overswing TechnologyTo use top rotation brake technology to control the amplitude of Boom on swing, the boom's overswing amplitude is reduced by 60%.Longer Life Time Wearing PartsDelivery pipeDischarge port/transition bushingConcrete pistonWear plate/cutting ringDelivery cylinderSelf-diagnosis TechnologyContinually monitors more than 200 aspects of the system during operation. Faults are displayed on the monitor. Review of the detected faults can reduce troubleshooting time by 70%.Safety Protection TechnologyOverload protection for boom cylindersAgitator safety switch offBoom interference preventing technology
Product Parameters
Category
| Item
| Unit
| SYM5230THB
|
| Oerall weight
| kg
| 23000
|
Brand
| --
|
|
|
Chassis
| Model
| --
| Zz5207m521ge1
|
Wheelbase
| mm
| 5200
|
Max.power
| kw
| 203
|
Engine
| Emission
| --
| National V
|
Theoretical
| M³/h
| 100
|
Pumping system
| Concrete pumping pressure
| Mpa
| 8
|
Theoretical pumping times
| Times/min
| 25
|
Delivery cylinder diameter ×stroke
| mm
| Φ230×1600
|
Placing boom
| Reach height
| m
| 29.6
|
Reach depth
| m
| 18
|
Slewing radius
| m
| 25.7
|
Slewing angle
| °
| 360
|
Detailed Photos
