Confetti Party Popper Paper Tube Making Machine/ID20-109mm/Max Length 500mm

Product Description

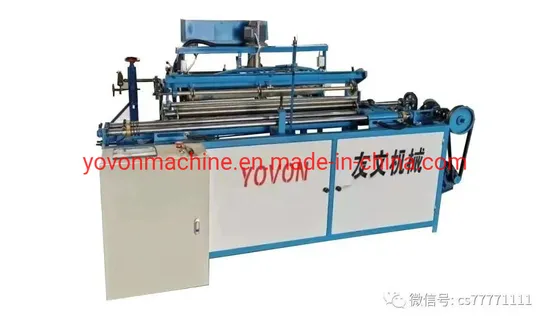

Confetti Party Popper Paper Tube Making Machine
cs-9type tube making machine (full-auto)
1. DETAIL MESSAGE:
full-auto paper tube making machine for fireworks. it can roll (full-auto) glue and cut tube and drop out tube on one machine. It needn't pump. The machine is used for producing parallel paper tube and then cut it into short tubes automatically. It consists of paper stand, gluing device (automatic cycle system with diaphragm pump), auto-water-adding system, paper cutting device, tube forming, tube-cutting and discharging device. The machine is equipped PLC and step motor with machine.
2. Technical parameters
CS-9 type tube making machine (full-auto)

Technical parameters CS-9 type
Number of roll paper	3-10layer
Tube ID	20-102 mm
tube thickness	1-3 mm
Applicable paper gram	160-320gsm
Max. Paper tube length	500mm
Roll core mold fixed	Three claws chuck
Winding head	2 rolls of belts
Cutting mode	Single circular knife cutting
Glue way	Single sides
operation	1 person
Paper delivery speed	16 sheets/min
Speed control	transducer
Applicable glue	white glue/Tapioca starch glue
Input power	7*1.1KW/380V/50HZ/3phases
weight	700 kg
Main frame size	2200×2500×1400mm

About Us - YOVON Machine
YOVON Machine-Candy
http://yovonmachine.en.made-in-china.com
Li Ling YOVON Fireworks Machine Factory have been manufacturing and supplying machinery and raw-materials all over the world.
We are a fast growing plant which are specializing in manufacturing in different kinds of fireworks machinery ,It marks the beginning of the development of the fireworks industry from the handicraft industry to mechanization. The production bases are located in Liuyang, Liling and Pingxiang, which are the major production centers of Chinese fireworks. After more than two decades of hard work, it has produced advanced equipment for the production of various types of fireworks, and a complete set of equipment for the earth red,such as :
1 A set of red (match) firecracker machines
2 A set of fireworks cake machines
3 A set of confetti party popper machines
4 A set of paper tube paper can machinery
5 Roman candles, fountains, sparkles, pop pop snappers, birthday fire candles, gatling-gun shots fireworks and Rotate the airborne fireworks of all machinery
6 Safe fuse machines and powder mix machines
7 Toy pistol ring cop filling machines
8 Display shell making and wrapping machines
9 parallel thermocouple Paper tube and electronic cigarette paper core rolling machine
10 Paper tube paper core labeling pasting machine
11 Transformer insulation crepe paper tube machines
12 pet cat climbing tower frame machine
We have hundreds of types of machine .Reliable quality, simple operation is the most advanced equipment of the current Chinese fireworks machinery, improve the productivity tools of the fireworks, reduce the original factory cost and save time, and innovate and develop. Products sold worldwide, India, Pakistan, Malaysia, Russia, Turkey, Iran, Mexico, Portugal, Sri Lank, Brazil, Egypt, Australia, Malta, Peru etc.
With the experience and professional management, we will offer the best services to all customers.
Our company insists on the enterprises spirit of "Quality First, Customer Focus".
We sincerely invite friend from all over the world to cooperate with us and create a bright marketing and future development.

---
