CNC Stone Mining Diamond Wire Saw Cutter for Cutting Granite Quarry/Construction

US$13,600.00-18,600.00 1 Piece (MOQ)

Basic Info.

Model NO.
ZL-WSM001
Type
Hydraulic Cutting Machine
Usage
Jadestone, Granite, Marble
Application
Machinery & Hardware, Mineral Industry, Stone Industry
Source Voltage
230V
Automation
Semi-automatic
Cutting Ability
High Speed
Control
CNC
Certification
ISO, CE
MOQ
11.5mm/11mm
Color
Yellow or Orange,Customerized
Weight
2-4 Ton
Spec
37kw, 55kw, 75kw
Transport Package
Wood Pack or as Request
Specification
50, 60, 75, 10 horse power, 2200*1450*1650
Trademark
Z-Lion
Origin
China
HS Code
8464109000
Production Capacity
3000PCS/Month

Product Description

Product Description
ZL-WSM001 Diamond Wire Saw Machine For Stone Quarry/Blocks,Reinforced Concrete Steel Bridge Ships Walls Construction Building Materials Cutting
Product Parameters

1. Products Description
1. Z-LION diamond wire saw machine adopts dual inverter + PLC + touch screen electronic control mode.
2. According to the changes of the load, to automatically adjust the walking speed, making the bead rope is always in the best working condition.
3. it can keep the wire tension constant during stone or concrete block cutting.
4. Extension of the front column, to improve the straightness of the block squaring.
5. Unique pulley guiding device, to maximize the utilization of the wire
6. Protection function: wire broken, overload and open phase protection
7. Easy to operate, there is no requirement for the power phase
8. Easy to move
Advantage:
· Stable quality with reasonable price
· Low energy consumption and long life
· ISO certificate
· OEM/ODM
· Strictly raw material source and production quality control ensure stable quality.

2. Technical Parameters
Driving Motor Power (KW/HP) 75KW-6P/8P
100HP-6P/8P
55KW-6P/8P
75HP-6P/8P
45KW-6P/8P
60HP-6P/8P
37KW-6P/8P
50HP-6P/8P
Flywheel Diameter (mm) 800/1000 660/800 660/800 660/800
Wire Saw Length(mm) 20-150 20-120 20-100 20-80
Wire Saw Diameter(mm) 11.5 11.5 11.5 11.5
Line Speed (m/s) 0-50
0-40 0-40 0-40
Walking Speed of Machine (m/h) 0-100m/h (Slow: 0.36m/min; Fast: 2.20m/min)
Total Power (KW) 78 58 48 40
Walking Moter Power (KW) 0.75 (6P)
Driving Head Rotation Motor Power (KW) 1.5 (6P) 1.1 (6P)
Driving Head Walking Motor Power (KW) 1.1 (6P)
Rotation Angle 360°
Driving Head Moving Range (mm) 0-600 0-550
Rail Length (mm) 4*2m+1*1m
Driving Motor RPM (r/min) 980/740
Allowed Working Temperature -15°C/+40°C
Voltage AC380±10% 50HZ
Net Weight (T) 2.8T 2.4T 2.3T 2.1T
Dimension L*W*H (mm) 2200*1450*1650 2000*1250*1500

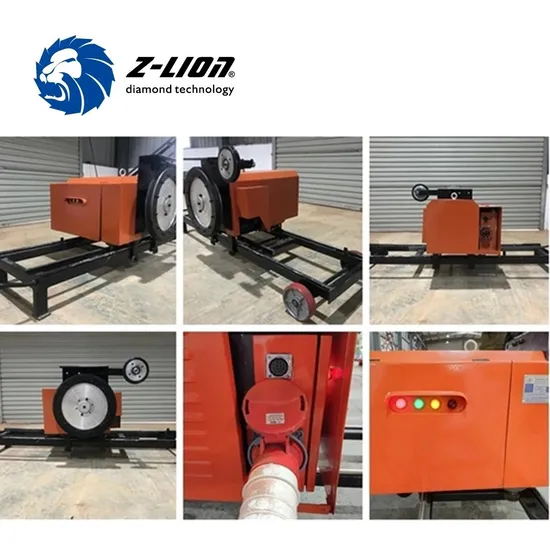

3. Products Details
4.Application The machine can be used for cutting bridge, support beam of building and for splitting small stone blocks. Product Application:
5.Packing details First, wrap the machine with plastic film. Second, pack the machine into the wooden cases. Finally, fix the wooden cases on pallet for easy transport by sea.
6.Shipping1. Delivery time For sample, 7-15 working days once payment confirmed. For bulk, depends on the quantity.2. Shipping Method For sample order which is less 45kgs, Express will be a better choice. (DHL, UPS, FedEX, TNT, etc.) For normal order which is 45-100kgs, Air Freight will be a better choice. For normal order which is above 100kgs, Sea Freight will be a better choice.
Our Services
Payment Terms T/T, western union, PayPal, L/C; For small order:100% payment before delivery;For large order:70% T/T before delivery, and 30% after delivery. Services Manufacture company, with more than 20 years experiences in diamond Segment,diamond wire saw, diamond saw blade production. Inspected by the ISO 9001-2015 Certification. 100% QC inspection Before Shippment. OEM and ODM are available,Cost-effective price MOQ: Any quantity you need is welcomed.
Customized Design: We can produce according to your request
Good Quality: Strict quality control system.Products get great feedback from customers.
Fast Delivery: We can delivery our cargo in 7 days, as soon as possible.
Detailed Photos
Company Profile

Z-LION DIAMOND TOOLS GROUP / Xiamen ZL Diamond Technology Co., Ltd. is a professional diamond tool manufacturer. Our main products include diamond cutting blades, grinding wheel, polishing pads, core drills, diamond wire saw, etc. Our products are used for cutting, grinding polishing and drilling of stone, ceramics, glasses and concrete.
Our products have sold to Europe, North and South American, South-East Asia, Middle East, etc. From its establishment, our company focuses on innovation of products.
By far, we have 17 of invention patent, 11 of utility model patent, 34 of appearance patent, and 1 of PCT patents.
The company will stick to the enterprise spirit of "Quality, Efficiency, Innovation and Integrity". With our profound technical resources, strict ISO quality management system, and qualified workers, we will provide best service and create extra value for our customers.
We cordially welcome customers at home and abroad to join us and cooperate with us, making better life and future together.
