Light Gauge Steel Framing Machine for House Building

Product Description

Light Gauge Steel Framing Machine for House Building
OVERVIEW

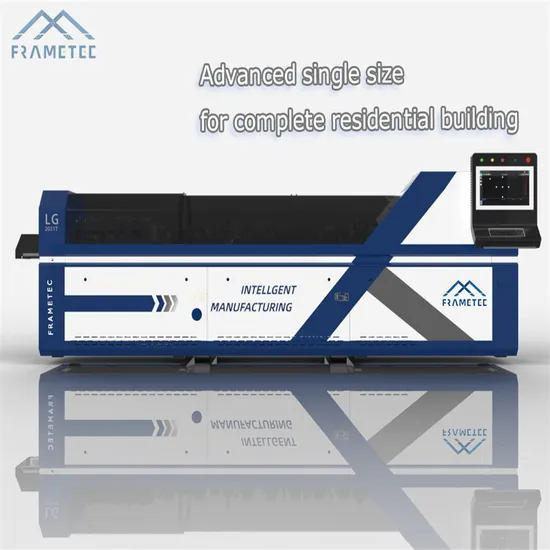

The LG2021T is a highly versatile member of the FrameTec manufacturing system. Designed to offer increased production speed, greater flexibility, and increased reliability, the LG2021
T roll-forming machine is best suited for residential and light commercial projects. Producing profiles from 2.5" (63mm) to 6" (150mm) up to 18g (1.20mm) thickness.
The LG2021T is suited to construct walls, floors, and roofs for 1 - 3 level residential, modular, and transportable units, and light commercial construction. It can produce roof trusses up to 15m clear span and can be either factory-based or transportable in a mobile factory.
Machine Equipment
1. Specifications

Profile Shape	C Shape
Profile Size	75-89-100-140-16 mm
Material Thickness	0.7-1.2 mm, G300-G550 Zinc-Alum Steel Coil
Operation System	21 inches Touchable Screen
Production Control System	Self-devoloped FrameTec LGS machine Controlling Software
Design Software	Vertex BD from Finland
Comprehensive Machine Speed	Joists: 300 m/hr Walls: 700 m/hr
Max. Machine Speed	2,100m/hr
Power Supplier	380V, 50Hz, 3Phrases, can be customized
Hydraulic Coolant System	Self Cooling, Optional refrigeration device for high strength production, air cooling and AC cooling
Punching, Cutting Mould	dimple hole, Chamfer cut, Web notch, lip cut, service hole, bolt hole and shearing
Hole Punching Accuracy	± 0.5 mm
Decoiler	3000 kgs,auto decoiling

2. Machine Main Features

Classical LGS machine models for 6+ years, very stable and with high speed production speed	The LG2021T produces wall frames, trusses and joists for residential and light commercial building quickly economically
12 advanced hydraulic and punching functions for high productivity and versatile components production such as trusses, walls and joists	An auto-gauging system that automatically adjusts gauge range to increase overall productivity for steel thickness from 0.75 -1.20mm
High line speed results in the accelerated cold formed steel framing and truss manufacturing output	Smart internet connectivity provides cloud-based data reporting to enable real-time production management, and technical diagnostics to improve efficiency
High line speed results in the accelerated cold formed steel framing and truss manufacturing output	Self developing control system base on the market feedback that can meet your requirement well & with good after sales support

Machine Details
Working Flow:
De-coiler→ Leveling Device→ Punching Device→ Roll Forming System→Cutting Device →Out-let table
Machine details:
Profile Effect & Application
Design Software & Production System
(International leading brand for LGS construction design)
Our Factory
Why Choose FrameTec
FrameTec is a specialized manufacture focusing in high quality roll forming equiments for the construction of light steel frame structure & cold formed steel structures.
For many years, FrameTec insists on cooperating with customers as a partner and actively provides effective solutions to ensure reliable product performance, advanced technology and easy operation, and promote users to a higher position in the fierce market competition.
All our machines have a built in Windows based machine control which accepts a basic CSV file from a range of design software options that link to our machine. This gives freedom of choice to the customer.
FrameTec specializes in Designing and Manufacturing Steel Framing Machines for Panels, Trusses and Floor Joists in:
Residential and Commercial buildings
Steel framed systems for modular & prefabricated buildings
Walls framed for low and high rise buildings
Walling, floors, beams, roofing, kitchen & bathroom pods
Storage, recreational, transportable dwellings

---
