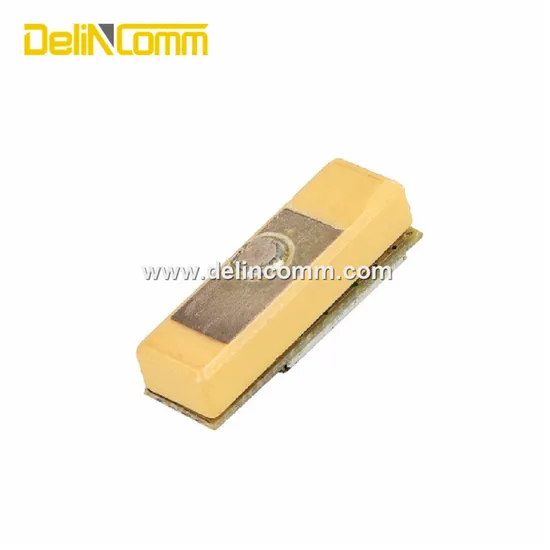

Patch Internal Active GPS Built-in Antenna

Product Description

1. Description: It is a built-in GPS active antenna consisting of ceramic antenna, low noise amplifier and feed back cable. It has the following characteristics: Low Voltage:2.7~3.3V Low Noise Factor:≤1.5 Gain:16±1dB 2. Antenna Structure

Size	25*25*4mm/25*25*2mm/20*6*4mm/18*18mm/15*15mm/ 13*13mm/12*12*4mm/10*10mm/6×16×6.7mm
Connector	IPEX
Cable	1.13(light gray)
Weight	<10g
Working Temperature	-40ºC~85ºC
Working Humidity	10%~95%
Storage Temperature	-45ºC~85ºC
Storage Humidity	10%~95%
Cable Length	5mm

3. Technical Characteristics 3.1 Antenna

Central Frequency	1575.42MHz
Baud Width	10MHZ
Gain(Maximum direction)	3dB
Gain(10 degree elevation)	-5dB
Polarization	Right-handed polarization
Impedance	50Ω

3.2 Low Noise Amplifier

Central Frequency	1575.42MHz
Gain	16±1dB
Noise Factor	<1.5dB
V.S.W.R	<1.5
Operation Voltage	2.7~3.3V
Impedance	50Ω

4. RG-1.13 Line Specifications 4.1 SCOPE:
The specification covers FEP insulated High-Frenquency coaxial cable for internal wiring of electronic equipment.
[UL STYLE 1354 80ºC/30V]
USE: Internal wiring of Class 2 Circuits of Electronic Equipment
4.2 Construction

Item		Unit	Spec. Value
Inner Conductor	Material	---	Silver plated copper
	Contruction	No./mm	7/0.08
	Dia.(approx)	mm	0.24
Insulation	Material	---	FEP
	Nom. Thickness	mm	0.22
	Dia.(approx)	mm	0.68±0.05
	Color	---	Natural
Outer Conductor	Type	---	Braid
	Materail	---	Silver plated copper
	Coverage	%	>93
	Dia.(approx)	mm	0.93
Jacket	Material	---	FEP
	Nom. Thickness	mm	0.10
	Color	---	Gray
	Dia.(approx)	mm	1.13+0.10/-0.06

4.3 Characteristics

Test Item	Unit	Specified Value	Note
Appearance	-	Faultless in visible	-
Temperature rating	ºC	150	-
Voltage Rating	V	250	-
Inner Conductor Resistance(at 20ºC)	Ω/km	Max. 597	at 20ºC
Insulation Resistance 1>(at 20ºC)	MΩ-km	Min. 1500	at 20ºC
Dielectirc strength		Delectirc core: No breakdown at AC 1.5KV for 0.15sec	Spark test
		Jacket: No breakdown at AC 1.5KV for 0.15sec	Spark test
		No breakdown at AC 500V for 1min	Outer conductor to inner conductor
Capacitance	pF/m	Nom. 98	At 1KHz
Characteristic impedance (at D-TDR)	Ω	50±2	TDR Method
Attenuation	dB/m	2.0	1.0GHz
		2.9	2.0GHz
		3.6	3.0GHz
		4.2	4.0GHz
		4.7	5.0GHz
		5.2	6.0GHz
Cross section of cable

---
