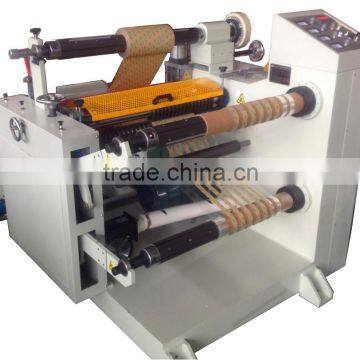

650FQ Automatic Foam Laminating and Slitting rewinding Machine

Product Description

Product Description
650FQ Automatic Foam Laminating and Slitting rewinding Machine Product Details
650mm protector film slicer
Features:
1. The max width: 650mm
2. The minimum slitting width: 8-25mm
3. Material thickness range: 0.05-3mm
4. Tolerence: 0.2mm, Precision: 0.1mm
5. The speed: 80m/min
6. Under CE and ISO
7. Manufacturer experience: 30years
8. Export experience: 10years
Charatertistics and Functions:
1. This machine is slitting equipment of high precision and high sensitivity, with inflatable bearing used for feeding and receiving materials.
2. Imported magnetic powder clutch is adopted to control the tension.
3. Imported gas sensitive device is adopted to detect the rectification of rolling, with fully automatic hydraulic rectification control.
4. Automatic detection, rectification and metering can be realized.
5. It is characterized be accurate slitting, fast slitting speed, ease of operation and maintain
Purpose:
1. It is applicable for the slitting tooling of industrial adhesive tape, electronic material, protective film, copper foil, aluminum foil, OPP, PE, PVC, sheet, cloth, etc.
2. This machine is widely used in the industries such as printing, packing, electronics, leather, clothes making, plastic, etc.
After-service:
1. Warranty for machine: 12months
2. After-service: A reply within 24 hours
3. A free training in our factory available before delivering machines.
Model 650FQ Automatic Foam Laminating and Slitting rewinding Machine
Max Feeding Width650mm
Main Engineer Power2.2kw
Speed80m/min
Size2400x1700x1300mm
Weight 1000kg
Rewinding Diameter600mm
Winding Diameter450mm
Precision ± 0.1mm
Power220V 50HZ

we have standard machine as below :
and non-standard is with one more rewinder
Basic Info.Model NO.:DP-650FQ
Type:PU Foam/ EVA Foam Slitting Rewinding Machine
Work Method:Round Knife Cutting
Main Engineer Power:4kw
Speed:80m/Min
Size:2400x1700x1300mm
Weight:1000kg
Unwinding Diameter:600mm
Winding Diameter:450mm
Precision:0.1mm
Power:380V 50Hz
Export Package:Wooden Case
Export Markets:Global
Additional Info.Trademark:DAPENG
Packing:Wooden Case
Standard:650mm
Origin:Kunshan, China
HS Code:84411000
Photoelectric guiding system :
optional at Ultrasonic correction
Standard 3 inch unwinding rewinding shaft :
Non-standard customized 1.5inch steel shaft
