Hot Sales CNC Machining Center Hmc Milling Machine CNC Machine Tools HMC800

Product Description

Product Description

Hot Sales CNC Machining Center HMC Milling Machine HMC800

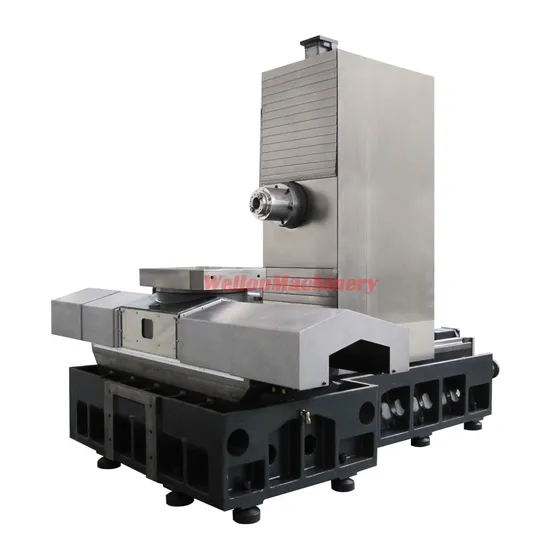

Detailed Photos

Product Parameters

Technical parameters:

	Specification	HMC800S	HMC800S/1	HMC800S/2	HMC800S/3
		Single table	Double table	Continuous indexing single table	Continuous indexing double table
Worktable	Worktable size	800×800mm	800×800mm	800×800mm	800×800mm
	Worktable number	1	2	1	2
	Worktable indexing	1°X360	1°X360	0.001°	0.001°
	Worktable transmission	240	240	160	160
	Worktable loading capacity	1500kg	1500kg	1500kg	1500kg
Travel	Worktable movement left and right(X Axis)	1100mm	1100mm	1100mm	1100mm
	Spindle head movement up and down(Y Axis)	850mm	850mm	850mm	850mm
	Column movement forward and backward(Z Axis)	900mm	900mm	900mm	900mm
	Distance from spindle center to worktable surface	100~950mm	0~850mm	100~950mm	0~850mm
	Distance from spindle nose to worktable center	180~1080mm	180~1080mm	180~1080mm	180~1080mm
Spindle	Max. Spindle speed	6000rpm	6000rpm	6000rpm	6000rpm
	Spindle taper	BT50-190	BT50-190	BT50-190	BT50-190
	ATC	24 (30/40)	24 (30/40)	24 (30/40)	24 (30/40)
Motor	Spindle motor	15kw	15kw	15kw	15kw
	X,Y,Z axis servo motor	30/30/30 Nm	30/30/30 Nm	30/30/30 Nm	30/30/30 Nm
	B axis servo motor	12N.m	12N.m	22N.m	22N.m
	APC servo motor	/	22N.m	/	22N.m
Leadscrew	X/Y/Z(Diameter×Pitch)	45×12/45×12/50×12	45×12/45×12/50×12	45×12/45×12/50×12	45×12/45×12/50×12
Rapid speed	X/Y/Z	24m/min	24m/min	24m/min	24m/min
	B axis	10r/min	10r/min	10r/min	10r/min
Positioning accuracy	X/Y/Z	0.012	0.012	0.012	0.012
	B axis	12″	12″	15″	15″
Repositioning accuracy	X/Y/Z	0.008	0.008	0.008	0.008
	B axis	6″	6″	10″	10″
Machine overall dimensions		3500×3000×2700	5500×3000×2700	3500×3000×2700	5500×3000×2700
Machine net weight		12000kg	14000kg	12000kg	14000kg

Standard accessories:

Fanuc 0i MF control system

24 Tool disc type ATC from Okada

Automatic chip conveyor

Nitrogen balance

Full closed cover

Automatic lubrication

Coolant system

Work lamp

Tri-color indication lamp

Air conditioner in cabinet

Company information
Packaging & Shipping
FAQ

1: What's your main products of your company?
A : We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
2:What kind of controlsdo you use on machines?
A :Siemens,GSK ,Fanuc etc. You can choose according to your requirements .
3. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
4 : How can I choose the most suitable machines ?
A : Please tell me the model or parameter you are interested in, we can provide you with the best price and quality.
You can also send us product pictures and we will choose the most suitable machine for you.
5 : Do we receive any updates while machine is in the manufacturing process?
A : Of course. The progress of the machine will be updated regularly and sent to you.

---
