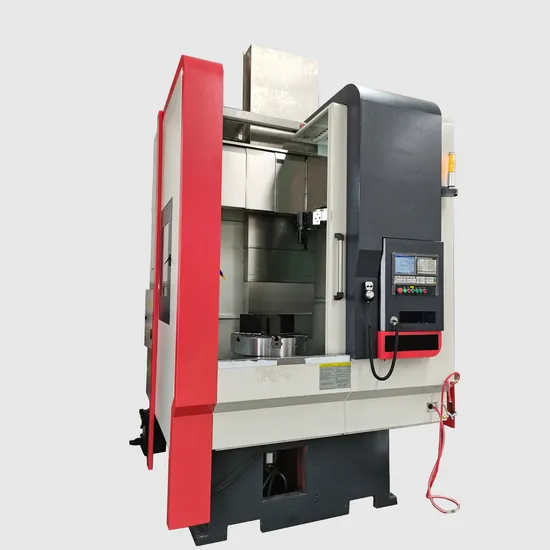

High Precision CNC Vertical Lathe with Servo Motor Drive

Product Description

High precision CNC vertical lathe with servo motor drive
Product Description
The machine is suitable for machining parts in all industries. Especially for wheel cutting and milling.On the machine cylindrical turning and boring . tapering and surfcing as well as grooving can be carried out rough and finishing.Since the workpiece is mounted on the horizontal worktable, it is more convenient to clamp the workpiece.

Main Features:
1. The base, column and sliding seat are all made of high-grade gray cast iron and have been tempered. Ensure that the machine tool has high strength and precision stability for long-term use.
2. The machine adopts roller-type linear slides. It has super high rigidity and heavy load capacity. The positioning accuracy,load-carrying capacity of vertical and horizontal feed movement are greatly improved.
3. The spindle pulley of the machine tool and the spindle CNC servo motor pulley are connected by a belt, and can be configured with 18.5Kw or 22Kw motors,continuously variable speed, and wide speed range. It can meet the different requirements of the spindle speed for rough machining
and finishing of parts.
4. The vertical and horizontal feeds are controlled by the servo motor automatically. There are protective
devices in both directions, and a load balancing mechanism is installed in the vertical direction, which reduces the load of the lead screw and greatly extends the life cycle of the lead screw.

5. Both ends of the ball screw in the vertical and horizontal directions of the machine tool are supported by special screw bearings, which greatly improves and guarantees the machining accuracy of the machine tool's parts.
6. The machine tool adopts an electric lubricating oil pump to automatically lubricate each part in an intermittent manner to ensure the lubrication of each guide rail pair and ball screw pair, which can prolong the service life of each movement pair. efficiency.

7. The tool post adopts horizontal or vertical multi-station CNC tool post, which has short tool change time and greatly improves work.
8. The upper end of the spindle can be equipped with a disc table or hydraulic chuck according to user requirements. The lower end of the main shaft can be equipped with a rotary oil cylinder, which is divided into single piston and double piston. The single pistoncylinder can be used to control the tooling to compress the workpiece, or to control the hydraulic chuck. With dual-piston cylinders, one cylinder controls the hydraulic chuck, and the other cylinder controls the tooling to compress the workpiece.

Product Parameters

Specification	Unit	VTC65	VTC75
Maximum rotating diameter of machine tool	mm	650	750
apindle speed range	rpm	100~1000	50~1500
cutting feed speed	mm/min	0.1~1000	0.1~1000
tool test vertical movement length	mm	550	700
tool test horizontal movement length	mm	450	700
rapid traverse speed vertically	mm/min	16000	16000
rapid traverse speed horizontally	mm/min	16000	16000
diameter of hyaraulichuck	mm	500	630
main motor power	kw	18.5	22
positioning accuracy	mm	±0.008	±0.008
repeated positioning accuracy	mm	±0.008	±0.008
Cross weight	kg	7000	9000
machine tool overall dimension	mm	1710x2050x2910	2200x1900x320

Application
CNC vertical lathes are suitable for internal and external turning, internal and external taper, arc, end face, slotting, threading, drilling, reaming, boring, chamfering of large-diameter shaft parts and disc-shaped parts. The machine has a wide range of uses, high efficiency, good stability, simple operation, and can realize high-precision processing for single or batch processing.
Packaging & Shipping
Packaging Details
1. Packing method: Internal plastic moisture-proof anti-rust packaging, External wooden packaging, Exclusive container transport.
2. Mode of transport: by sea or by land.
Our Services
Our services are divided into pre-sale, sales, after-sale three parts.

Pre-sale:to provide detailed advice, the program recommended to the factory inspection, as far as possible to meet your questions and needs.
Sales:can support samples, support diversified payment methods, the solid forklift tire press machine production process
transparent,standardized and quickly stocking.
After-sales:support diversification guidance, training, voice and video images, and even solid forklift tire press machine overseas site installation, on-site training, home maintenance, continuous return visit customers concerned about the use
Company Profile
Certifications
FAQ

1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .You can also send us the products drawing ,we will choose the most suitable machines for you .
2: How can I get a quotation?
A: Pls tell us the machine you need, including quantity, raw materials and other requirements.
3: Where is your factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5:How can i trust your company?
A:We have professional design, we can provide you suitable suggestion and lowest price
1. Assessed by third party, national patents and CE, ISO for all equipment, .

---
