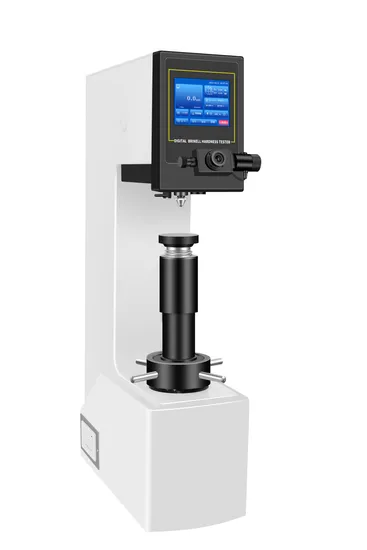

Advanced Brinell Hardness Tester with Smart Automation Technology

Product Description

Product DescriptionProduct Features:
The full-automatic Brinell hardness tester, a unique automatic turrent structure system, starts the test after the user defines the carbide indenter, test force, and holding time that match the measurement target. After the measurement is completed, there is no need to move the workpiece, Automatic switching of indenter and objective lens, CMOS directly captures the indentation image, and uses Vanguard International Semiconductor Corporation's advanced digital imaging technology to automatically find the pixel that most conforms to the characteristics of the indentation on the indentation image, high-speed analysis, and automatic reading. Automatic measurement of standard block indentation, shaded indentation, background blurry indentation, and elliptical indentation.
This instrument has 12 levels of test force and 16 types of Brinell hardness test scales, which can be freely selected;Equipped with 3 sets of ball indenters, all of which can automatically participate in testing;Equipped with two sets of objective lenses, both of which can participate in the measurement of indentation diameter;Automatically switch between the objective lens and the indenter based on the selected scale;Preset the test force holding time and adjust the strength function of the indentation light source for measurement;Real time display of loading time;Display measurement of indentation length, hardness value, measurement frequency, etc;Select the conversion values between various hardness scales;Product Parameters

Name	Specifications
Test force	29.42N(30kg),306.45N(31.25kg),612.9N(62.5kg), 980.7N(100kg), 1226N(125kg),1839N(187.5kg), 2452N(250kg),4903N(500kg), 7355N(750kg), 9807N(1000kg),14710N(1500kg),29420N(3000kg)
Test scale	HB 10/3000,HB 10/1500,HB 10/1000,HB 5/750,HB 10/500,HBW 10/250,HB5/250,HB 2.5/187.5, HB 10/125,HB5/125,HB10/100,HB 5/62.5, HB2.5/62.5,HB5/31.25 ,HB2.5/31.25,HB1/30
Measurement range	8~650HBW
Loading method	Automatic lifting, loading, holding, unloading, and automatic measurement of the workpiece
Maximum allowable height of the specimen	280mm
Distance from the center of the pressure head to the machine wall	200mm
Indenter objective conversion	Automatic
Dwell time	0-99S
Overall dimensions	230*600*920mm
Weight	220Kg
Objective lens	1X,2X
Optical path conversion	Automatic
Indenter diameter (mm)	Φ2.5,Φ5,Φ10 Installed on the same turrent
Working mode	One click operation, automatic lifting, loading, holding, unloading, CMOS measurement of the workpiece
Indentation image measurement method	Automatic measurement
Precision of repeated measurement of indentation images	Repeatability reaches ± 0.8%
Data display method	12.1 inch industrial grade touch screen
Data output	Output reports in WORD and EXCEL formats, which can be printed and output; Graphics engine displays more features
Data statistics	Hardness conversion:Automatically convert various hardness values such as Brinell Rockwell Vickers Knoop, and display them in real-time
Light source	LED
Function adjustment	Infinite adjustment of light source strength
Interface	USB,RJ45LAN,WLAN,RS232
Overall dimensions	1000×595×350mm
Supply voltage	AC 220V/110V±5%,50~60 Hz

Detailed Photos
Company Profile Guangzhou Forth Science Technology Co., Ltd. is dedicated to providing sales and maintenance services for a diverse range of precision instruments. Our offerings include length measuring instruments, optical instruments, shape instruments, material testing instruments, and chemical analyzers for food and medicine, among others.
Founded in 2005, our headquarters are strategically located in Guangzhou, a leading city in economic development. With convenient transportation and a vibrant economic environment, our location lends itself to both accessibility and prestige.
We have proudly partnered with globally renowned instrument brands such as FISCHER, ZEISS, BRUKER, MITUTOYO, SHIMADZU, KEYENCE, FOSS, and STRUERS for many years. This long-term collaboration has endowed us with extensive expertise in the field of precision instruments. We are confident that our customers will not only acquire high-precision instruments from us but will also enjoy an exceptional user experience and unparalleled service.
Looking to the future, we remain committed to our mission of delivering ever more accurate and advanced measurement solutions through technological innovation. We strive to continuously create societal value, progress alongside our customers, exceed their expectations, and achieve our long-term strategic and social goals.
The hardness tester is robustly built and is shipped in a specially designed, export-grade wooden crate. To safeguard against any possible damage during transit, the product is securely fastened with straps and screws. For smaller orders, express and air transportation are recommended. Larger shipments are best suited for sea freight. Please contact us to discuss the most suitable shipping method for your needs. Our Main Products:Measurement Instruments: Projectors, altimeters, surface roughness measurement instruments, contour measurement instruments, round/cylindrical degree measurement instruments, joint arm measuring machines, three-coordinate measuring machines, and more.Material Testing Instruments: Color difference meters, gloss meters, viscometers, microscopes, hardness testers, thickness testers, test machines, metallographic sample preparation systems, environmental test chambers, scanning electron microscopes, and more.Chemical Analysis Instruments: Spark direct reading spectrometers, RoHS analyzers, X-ray analyzers, atomic absorption spectrometers, infrared spectrometers, gas chromatographs, liquid chromatographs, temperament meters, liquid mass meters, Kjeldahl nitrogen analyzers, dairy analyzers, freezing point testers, and more.We adhere to the principles of 'the user is supreme, quality first, and best service.' By fostering strong relationships between manufacturers and customers, we remain aligned with the latest advancements in technology. We actively import mid-to-high-end frontier products that represent the international advanced level, growing alongside industry peers and our valued clients. We aim to empower our customers through the application of new technologies, innovations, and instructions, leveraging our vast resources and technical services.
Customer satisfaction is our ultimate goal.Our Business Concept:The user is supreme, quality first, best service.We warmly welcome customers from all over the world!
FAQ 1. Do you have after-sales service?How can I ask?
What about warranty?Before the delivery of the equipment, we conduct a thorough factory inspection to ensure its quality and functionality. Only after passing this inspection is the equipment shipped to you.If your machine does not operate correctly, please reach out to us. We will make every effort to resolve the issue through email or Skype video chat.We guarantee a response within 24 hours and aim to provide a solution within 3 working days.If necessary, we will send new parts or arrange for on-site maintenance after confirming the issue.The service does not cover mechanical failures due to the following reasons:
(1) Incorrect operation.
(2) Unauthorized modifications.
(3) Failures not caused by the equipment itself.
(4) Unsuitable operating environments, such as high temperature, humidity, corrosive gases, or vibration.Such as high temperature, humidity, corrosive gas, or vibration.(5) Issues caused during movement or transportation.
(6) Consumable components.
(7) Natural disasters.3. What is the delivery deadline?Most of the time, we maintain inventory at the factory.If inventory is not available, the delivery time is generally 15 to 20 days after payment is received.For urgent needs, we can consider special arrangements.4. What kind of packaging and transportation do you use?Under normal circumstances, we use reliable carriers such as DHL, FedEx, UPS, and *** for transportation.For larger orders, we utilize air or sea shipping.5. Can the device be customized?Can I customize my own design on the device?We provide both standard and customized machines to meet your specific requirements.Additionally, we can place your trademark on the machine.6. What kind of packaging do you use?We use plastic sealing and sturdy wooden boxes for packaging.

---
