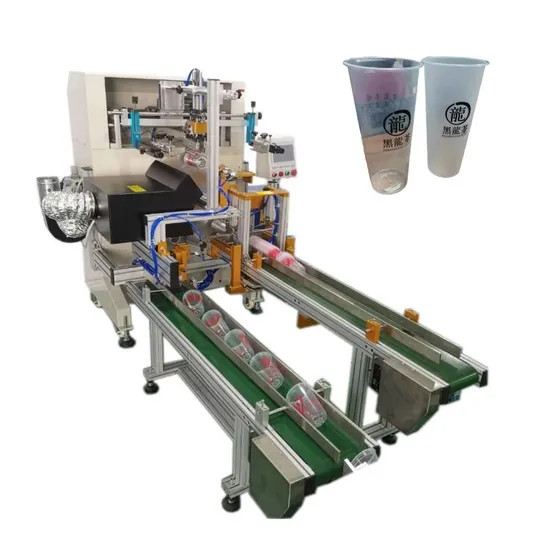

2 Color Automatic Cylinder Screen Printing Machine for Cups

Product Description

2 color full automatic screen printing machine for plastic cup Product Description Application area:
This machine is full Automatic rotary screen printing machine with auto loading and unloading with uv dryer system
Servo system full automatic color sensor register Cup full auto screen printer with LED UV dryer
Full automatic working, don't need any worker to operate it , it save labor cost
It is adopted full Servo system to control ,So that print multiple color very precise,It is adopted advanced high sensitive Sensor for making registration by automatically , automatic positioning ,It is very easy to print multiple color with high quality ,such ,2,3,.4,5,6 color ......
Programming is operated by PLC , inspect everything is very clearly.
Left and right running by full Servo motor,Screen frame moving by electronic motor.
working principle
The vibrating plate is fed to the turntable table, and the product printing surface is treated by flame. Then the table is rotated
to the printing station, and the screen printing is carried out. The UV device is turned down for drying, and the table is turned
to the blanking station, and the mechanical blanking is carried out to complete the whole process..
Up speed is 3500-4000 pieces per hour.
Flame treatment and uv curing can option
This machine is extremely good at 360 degree printing ( full circle)and a part of designs on Cups ,Bottles,Soft tubes ,Pots,Jars, Oil filters,Balls,Pens and other round items.
It is suitable for printing all kinds of materials,Such as, Plastic, Glass,Wood,Metal......Etc

Advantages:
We use all main parts are imported directly ,original place.
1.Servo motor is imported from Japanese famous brand Fuji,
2.High precise Sensor is imported from German famous brand Leuze
3.PLC system is imported from Japanese celebrated Hitachi
4.Touch Screen is imported American Guaranteed brand Wigerlon
5.Guide screw is imported great brand TBI from TaiWan.
6.Slide guide is from Hiwin from TaiWan.

1.	Product appearance:Round
2	Max printing diameter: Φ120MM
3	Max printing area: 320x220MM
4	Printing Speed: 4000 PCS/H
5	Printing precision:±0.05mm
6	Turntable diameter:Ø500 mm
7	Air pressure: 6 bar
8	Power supply:220V/50Hz, 110V/60Hz
9	Max product gradient: <14o
10	UV Machine power:4KW
11	Work cycle:4S
12	Gross weight: 800 KG Package size:L*W*H 2900mm*1300mm*1850mm
Warranty	For all our machines, we provide two-year warranty.lifelong maintenance Life-long on-line technical support and provide free parts when problems occur within one year not including shipping cost.

Detailed Photos
Company Profile Shenzhen Eco Printing Co.,LTD is located in Dong guan city,"World trade Factory"with an experienced and professional team for more than 20 years, we have exported our machines to more than 150 countries around the world, including the Europe, Africa, USA, Slovakia, Romania, Lithuania, Lebanon, Bangladesh, Egypt, Spain, Russia and Saudi Arabia.etc.
Our main production line:Auto UV Screen printer, Pad printer, ,UV curing machine,flame treatment machine ,IR dryer machine, Peripheral Equipment &Accessory & consumable field . We gathered highly experienced and skilled staff.With our proven track record of customer service,we have gained a quality yet valuable reputation in the digital printing and ink industry.Thanks to our customers ,we are on a high way of becoming a global.Advanced industrial digital printing and ink supplier."The quality to win client, the service to retain client, the sincerity to impress client."is responsibility and target of Shenzhen Eco. There are customers from 98 countries to visit our factory and we had a good cooperation.
Certifications We passed ISO-9001-2000 certification in 2000, and we are a member of SGIA and all of our industrial printers had passed CE standard.
Packaging & Shipping
Contact details Welcome to Dong guan, China, Welcome to Eco Printing.Customers are our friends, business integrity is our purpose
Hope our friendship last forever.
Pls click on the pics to send us inquiry then we can talk more details.

---
