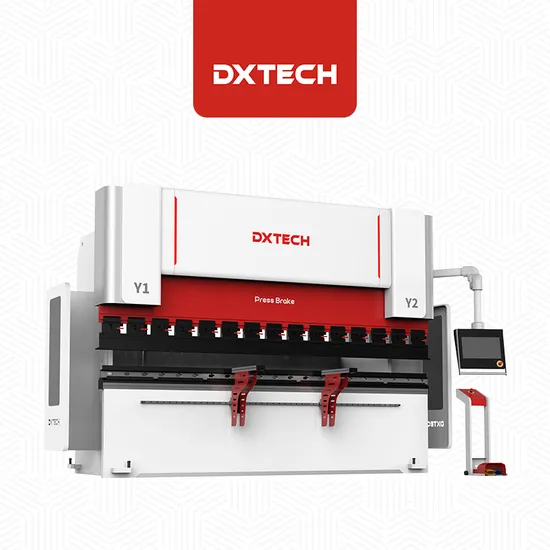

Affordable CNC Sheet Bending Machine 800kN 1000kN 1250kN 4000mm Hydraulic Press Brake Machine

Product Description

Features
1. Fully Annealed Frame:
DXTECH steel frames undergo annealing at over 600 to relieve stress and they are built to last years of heavy use without distortion.
2. Optimized Base Frame:
-Very stiff and stable base frame
-Deformation simulation made by CAE
-Stress points analysis
Usage of high-tech boring machines for extreme precision parts.
3. Quick Clamping Device:
Equipped with a quick clamping device for the upper mold, which is convenient for changing the mold.
4. Safety: Lazersafe system, Back safety barriers, Machines with EC certification
Technical Parameters

No.	Item	Parameter
1	Power supply	220V 3PH 50HZ
2	Power supply stability	±10%
3	Install the laser ambient temperature	5~40 ºC
4	humidity	20-85%
5	Electrical control cabinet	IP40
6	Control box	IP45
7	Number of control axes	4+1(Y1,Y2,X,R+V)
8	V-axis form	Mechanical compensation
9	Nominal force	800KN
10	Table length	2000mm
11	Distance between columns	1600mm
12	throat depth	360mm
13	Slider stroke	200mm
14	Maximum opening height between worktop and slider	460mm
15	Oil pump	16F
16	Main motor power	7.5KW
17	Machine outline dimension	4200*1600*1300mm
18	Travel Y-axis	0-9999.99mm
19	Display resolution	0.01mm
20	control accuracy	±0.01mm
21	Programming angle	10-180°
22	Bending speed	0.1-20.0mm/s
23	Maximum bending steps	25

Premium Product Components
E21 Controller
Name: E21 Controller
Original: China Estun
1) HD LCD display, with both Chinese and English language options.
2) X, Y-axis intelligent positioning.Quick-Release Clamp
Name: Quick-Release Clamps
Original: China
1) Quickly Fix, Release, and Change the Punch From the Press Brake.
2) Save your Working Time.
Samples Display
Application
Why choose DXTECH?
FAQ
1. Do you have the CE document and other documents for customs clearance?A: Yes, we have the Original. At first, we will show you and after shipment, we will give you CE/Packing list/Commercial
Invoice/Sales contract for customs clearance.
2. Payment terms?A: trade assurance/TT/West Union/Paypal/LC/Cash and so on.
3. What's the max. cutting thickness?A: Cutting thickness is related to laser power.Note: only 1KW or above fiber laser could cut Aluminum, Copper, Brass, and other high-reflection sheet metal.
4. Which kind of materials can be processed on this machine?
A: Wood, MDF, stone, acrylic, glass, plastic, foam, aluminum, copper, and almost all kinds of non-steel materials.
5. How long is the delivery time?
A: For standard machines, it will be 7-10 days; For non-standard machines and customized machines according to the client's specific requirements, it will be 15 to 30 days.
6. I don't know which one is suitable for me.
A: Just tell us the below information
1) Max work size: choose the most suitable model.
2) Materials and Cutting thickness: Power of laser generator.
3) Business industries: We sell a lot and give advice on this business line also, provide Door service if you need it.

---
