New Technology Automatic Plastic Bottle Sealing Machine Automatic Bottle Sealing Machine

Product Description

Product Description
New Technology Automatic Plastic Bottle Sealing Machine Automatic Bottle Sealing Machine
Product performance:

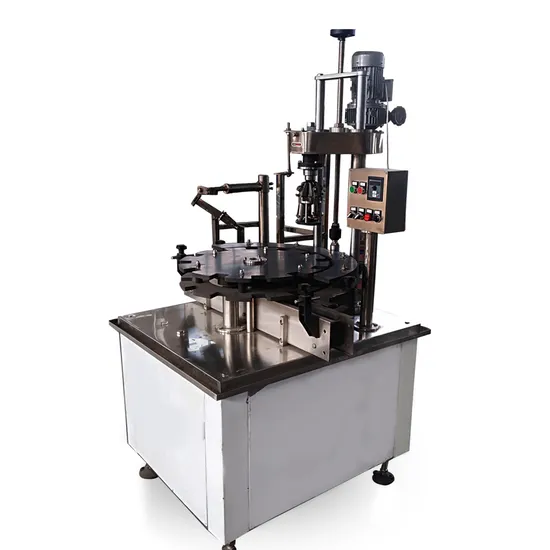

This series cap sealing machine is specially designed for the bottle type of disposable torsion aluminum anti-theft cap.
Product features:
1. Tight sealing: sealing without cracks, no scratches, tight back sealing;
2. Wide adaptability: the capping head is four-wheel balanced lever head;
Easy to adjust, roll edge wrapping automatically completed, smooth appearance without wrinkle, good sealing effect.
3. Small damage rate of bottle cap: using bottle cap positioning device,
bottle cap and head positioning more accurate, improve the utilization rate of bottle cap;
4. Long service life: the sealing wheel is made of special steel, with high wear-resisting treatment and high strength.
Product Parameters

model	TPP-TY1	TPP-TY4N
capacity	750-1200pcs/h	4000-5000bottles/hr
power	1.5kw	1.5KW
voltage	380V50HZ, 3phases	380V50HZ, 3phases
Bottle mouth diameter	18-35mm	18-35mm
Bottle body diameter	60-100mm	60-100mm
Bottle height	120-320mm	120-320mm
dimension	1500*1200*2000mm	1500*1200*2000mm
weight	800KG	800KG

Detailed Photos
Compared with the old capping machine:
1.Transmission system upgrade, including guide rod CAM with new.
2.The size of the pull plate is increased
