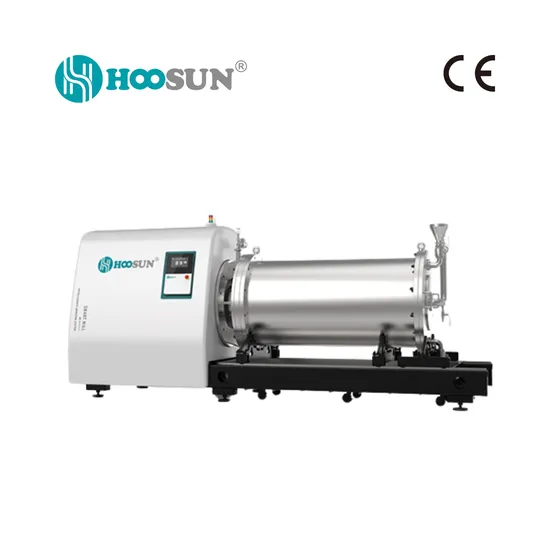

Ultra-High-Flow CNC Nano Grinder for Battery Components and Coatings

Product Description

Performance Advantage01
The dual power centrifugal nano bead mill is designed based on the principle of (screen free) centrifugal separation. The centrifugal separation has an independent power motor. During machine operation, most of the grinding zirconium balls are distributed around the periphery of the grinding chamber and move in the same direction as the object due to the centrifugal force of the disperser, A small amount of zirconium balls and materials rotate around the separator. The separator generates a centrifugal force on the zirconium balls at high speed, which is greater than the pressure generated by the pump on the zirconium balls in the chamber, keeping the zirconium balls in the grinding chamber. At the same time, the separator generates a centrifugal force on the materials at high speed, which is less than the pressure generated by the pump on the chamber materials, forcing the materials to flow out of the separator. The grinding cylinder adopts silicon carbide material with good wear resistance and thermal conductivity, thus having a stronger application range.
02
Fineness: 50 - 150nm
Zirconia Bead Dia.: 0.03-0.6mm
Separation system: Centrifugal separation
Optional materials: Tungsten carbide/Polyurethane/Zirconia/silicon carbide/Silicon nitride
03Ultrafine nano rod pin high-efficiency grinding machine, with a grinding fineness of less than 100nm, independent operation of material grinding and material separation, and more precise and thorough grinding. The effective output per unit time is 2-3 times that of ordinary sand mills.
04
Application: Nano new materials, MLCC, Lithium batteries, Silicon carbon cathode electrodes, Alumina, Ceramic ink etc.Company Profile
