Carbon Steel, Aluminum, Stainless Steel Shearing Metal Plate Cutting Machine

Product Description

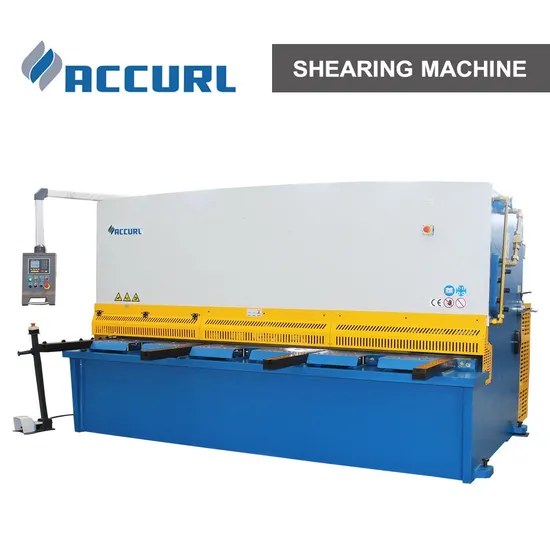

Carbon Steel, Aluminum, Stainless Steel Shearing Metal Plate Cutting Machine
The hydraulic swing beam shear can handle the large dimensions required in tube and roll forming manufacturing lines.Besides handing large dimensions,the hydraulic swing beam shear can also be configured for piercing and blanking.Here at Accurl,we guarantee that we can provide you with the hydraulic shear that will get the job done.
Standard Components
Frame produced in China by ACCURL accurately dimensioned through FEA
Multi-edge blades for cutting aluminum,carbon steel ,and stainless steel
Cutting=line illumination and wire for shadow-line cutting
Stroke counter
Quick cutting-length adjustment
Hydraulic and electrical overload protection
Squaring arm and front support arms
Bed infill plates with ball transfers
Delta inverter with ball screw and polished rod with 0.01 mm accuracy
Backgauge adjustment according to blade gap
Backgauge retraction feature
Sub-program and programming loop
Sequence repeat function
Auto-cutting(Flying cut) Machine CONTROL
Name: NUMERICAL CONTROL
Brand: Estun E21 NC control
Original: China
The ACCURL® Estun E21 NC control provides a complete and compact shear control application. Including backgauge control, gap control and stroke length limitation this state of the art electronics based unit makes a versatile solution. Main Features
Name: SHEET PRESS CYLINDERS
Brand: ACCURL
Original: ACCURL
The ACCURL® cnc hydraulic shearing machine is equipped with cylinders which press on the metal sheet with an automatically regulate-able pressure which varies according to the pressure required by the thickness and consistency of the material to be cut. Machine Parts
Name: HYDRAULIC SYSTEM
Brand: ACCURL
Original: CHINA
The ACCURL® cnc hydraulic shearing machine is equipped with a hydraulic system capable of simplifying the operator's work enormously and to facilitate all the adjustments necessary for obtaining the best quality cut. Made up of the highest quality, all European, components, the hydraulic unit is a guarantee of long life for the machine as.
Optional Equipment
DELEM DAC 310 CNC Control
Pneumatic Sheet Supporting System
Table Mounted Sheet Angle Cutting Gauge
CNC Control with input of Plate Thickness

Type	Cut Thickness	Cut Length	Shear Angle	SPM	Back Gauge	Throat Depth	Main Motor	Net Weight	Outline Size (L*W*H)
	mm	mm	Degree	min-1	mm	mm	kw	kg	mm
MS7-4*2500	4	2500	1°30'	≥22	600	100	5.5	4650	3300*1600*1700
MS7-4*3200	4	3200	1°30'	≥18	600	100	7.5	4950	3950*1600*1700
MS7-4*4000	4	4000	1°30'	≥12	600	100	7.5	6900	4600*1705*1600
MS7-6*2500	6	2500	1°30'	≥16	600	120	7.5	5140	3150*1500*1600
MS7-6*3200	6	3200	1°30'	≥12	600	120	7.5	6250	4000*1700*1800
MS7-6*4000	6	4000	1°30'	≥10	600	120	7.5	8520	4650*1700*1800
MS7-6*6000	6	6000	1°30'	≥7	600	120	11	17000	6780*2450*2100
MS7-8*2500	8	2500	1°30'	≥14	600	120	7.5	5900	3180*1680*1700
MS7-8*3200	8	3200	1°30'	≥12	600	120	7.5	6500	4000*1800*1850
MS7-8*4000	8	4000	1°30'	≥10	600	120	11	7360	4680*1800*1850

---
