Factory Direct High Speed Sash Hair Foil Pop - up Foil Folding Machine

Product Description

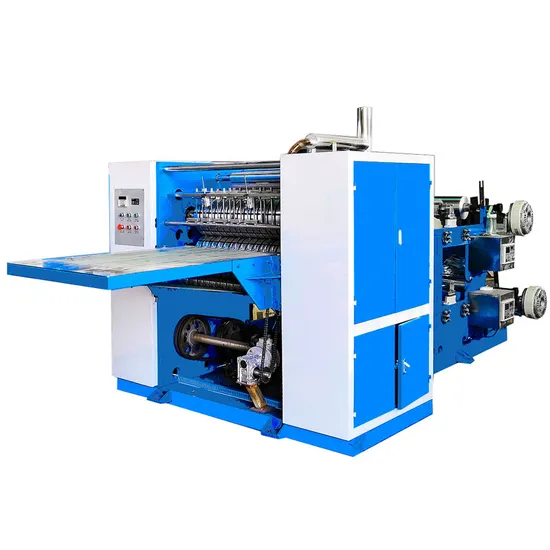

The Automatic Pop Up Foil Sheets Machine model SEPS-680/980 which has been specifically studied for producing Pre-Cut, Interfold, Pop Up Foil Sheet of Aluminum Foil. Thanks for it's compact design and the programmable working cycle, it can producing non-stop with two/three/four lanes and always offers great production performances by the simple operation. If connect with Automatic Sheets Box Packing Machine could setup a full automatic production line. The Production Process:
Load Jumbo Roll on Two Sets Aluminum Foil Unwinding Unit
Constant Tension Adjustment
Embossing Unit ,Slitting Unit
Vacuum Adsorption Folding(V interrupted)
Finished Pop Up Sheet Collecting and Pushing Out to Belt
Counting (Two design available: Cylinder counting and Sensor counting)
Press Counted Sheets UnitAutomatic Sheets Box Packing Machine
The packaging forms of automatic feeding, box opening, box entering, glue spraying, box sealing and waste removal are adopted, with compact and reasonable structure and simple operation; Convenient household extractable foil, pop-up foil is suitable for food cooking, packaging and baking.

SEPS-680	SEPS-980
Raw Material	Aluminum Foil	Aluminum Foil
Material Thickness	12-20micron	12-20micron
Mother Roll Core Diameter	76mm	76mm
Max Mother Roll Diameter	Max.800mm	Max.800mm
Mother Roll Available Width	Max.610mm	Max.910mm
Sheet Open Size(L*W)	273x304.8mm(10 3/4"x 12")	263x228mm(10 1/4" x 9")
Folded Sheet Size(L*W)	135x304.8mm	130x228mm
Fold Shape	V shape interlocking, 3-5mm fold angle	V shape interlocking, 3-5mm fold angle
Speed for 304.8mm Sheet	400-500pcs/min*2lanes	400-500pcs/min*3lanes
Speed for 228mm Sheet	400-500pcs/min*2lanes	400-500pcs/min*4lanes
Installed Power	27KW(22kw Roots Vacuum Pump +4kw Main Motor+1kwTension)	27KW(22kw Roots Vacuum Pump +4kw Main Motor+1kwTension)
Power Supply	380V, 50Hz, 3ph+N+E	380V, 50Hz, 3ph+N+E
Air Pressure	0.5-0.8Mpa, 300L/min	0.5-0.8Mpa, 300L/min
Dimensions L x W x H	4400x1800x2200mm	4200x2300x2200mm
Net Weight	5500kg	5800kg

---
