Plastic PP PS Sheet Extrusion Line PP PS Sheet Making Machine/Extruder

Product Description

Taizhang Machinery has 15 years experience of providing solutions and manufacturing of plastic sheet extrusion production line, our sheet extrusion lines are widely used for plastic sheet extrusion of PET, PP, PS, PE, PLA, PVC,etc. Based on customer requirements, taizhang also provide single layer sheet extrusion machine, double-layer co-extruded sheet production line, multi-layer co-extruded sheet production line.

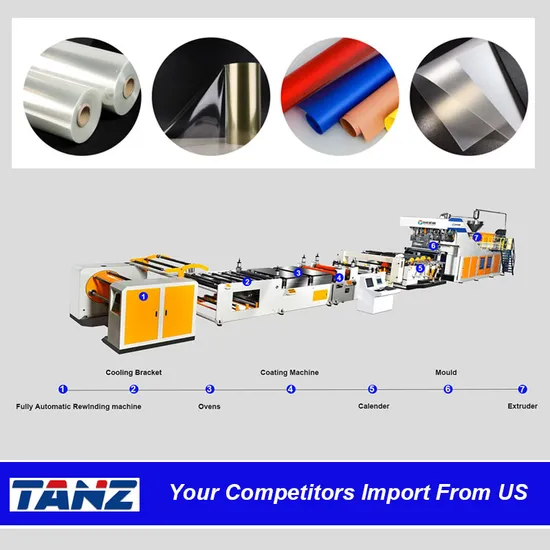

Plastic PP PS Sheet Extrusion Line PP PS Sheet Making Machine Sheet Extruder Machine
FUNCTIONAL FEATURES:
The screw is from Taiwanese Technology, has the advantages of forced feeding, high speed, high production capacity and good quality.
SCOPE OF APPLICATION:
According to different product requirements, this PP/PS extrusion production machine can produce single layer sheet, two-layer co-extruded sheet, multi-layer extruded sheet. Widely used in the fields of food packaging, stationery packaging and other plastic packaging. There are transparent PP sheet, frosted sheet, two-color sheet, etc.
PP PS Sheet Extrusion Line Parameters:

Model	Aplicable Materials	Screw specifications	Sheet thickness (mm)	Sheet width	Maximum extrusion output (kg/h)	Installed capacity(KW)
TZNZ-100PP	PP,PS,PE	Φ100	0.2-2.0	⩽850	PP:350KG PS:400KG	210
TZNZ-120PP	PP,PS,PE	Φ120	0.2-2.0	⩽850	PP:450KG PS:550KG	250
TZNZ-150PP	PP,PS,PE	Φ150	0.2-2.0	⩽850	PP:800KG PS:900KG	350
TZNZ-120/65PP	PP,PS,PE	Φ150	0.2-2.0	⩽850	PP:550KG PS:600KG	460
TZNZ-150/70PP	PP,PS,PE	Φ150	0.2-2.0	⩽850	PP:850KG PS:900KG	550

Factory Main Products :
1, PET sheet extrusion line, twin screw PET sheet extruder machine, PP sheet extrusion machine, PS sheet extrusion line, PP PS PE co-extruding machine, PLA extrusion machine.
2, Plastic cup thermoforming machine, Fully-auto all-in-one thermoforming machine, Semi-thermoforming machine, plastic cup making machine.
3.plastic crusher machine/plastic crusher/plastic bottle crusher/plastic crushing machine

Detailed Photos

Three-roller calender
The three-roller light machine is a horizontal or vertical or 45 degree inclined design.The thickness of the sheet is automated adjustment system,The machanical roller has anti-collision protection function.The use of electronic hand wheel operations to implement the sheet specifications,which are transformed quickly and relaxed,and no tedious operations are required.The accuracy of slices is as high as 0.005mm.
Mould
The mold is made of alloy steel, and the flow channel is chrome-plated and polished, allowing the mold width to be adjusted without stopping the machine.
Duplex Sheet Winder
The dual station winding machine is equipped with automatic meter meter , You can also customize a larger volume weight , and the larger diameter can be collected by 1.15 meters . It also specially developed an automatic winding machine that can collect 2 rolls at the same time to achieve high production capacity.
Extruders
PP PS can use single screw and parallel twin screw extruder.
Scope of application:
Relative Machines
Plastic Sheet Extrusion Machines
Taizhang provide a variety of plastic sheet extrusion production line solution, such as PET, PP, PE, PS, ABS, PC, PMMA, PLA, etc. Widely used in plastic sheet thermoforming industry.
Plastic Sheet Thermoforming Machines:
Taizhang provide professional plastic sheet thermoforming production solution, widely suitbale for produciton of plastic food container, fruit egg tray, seedling tray, electronic tray, plastic cup, lid, plate, flowerpot,etc.
Plastic Cup Making Machine
Taizhang pisposable cup making machines,they are widely
used for plastic milk tea cups, coffee cups, disposable watercups, fast food box,plastic lid,fruit box,fresh food tray,etc.
Certifications
1. Pre-sales Service
TANZ MACHINERY has a specialized and efficiency working team. If you are new on the plastic forming machine area,we are glad to give you specialized suggestion of the whole work.
2. Shipping Service
TANZ MACHINERY has a specialized and independent department to arrange the shippment. We will prepare all the necessary documents so as to arrange the delivery smoothly,
we cooperate with the most famous shipping company in China,they could provide the best and economic shipping ways to destinaion.
3. Installation Services
Installation Services are avaliable with TANZ Company machines. We could dispatch technician to the Buyer's factory for installation and preparation of the machines.
The buyer needs to supply the round trip tickets,food,hotel cost and daily salary.
4. Cilents Training Services
The buyer could aslo send your own technician come to TANZ factory to learn how to operate machines,Our technician will teach and train the learners hand by hand till he operate machine by himself.
5. After Sales Service
TANZ Company machines guarantee time is one year.
1. Our standard packing method is film wrapping.
2. Wooden case packing can be provided as required and the cost will be charged.
3. The delivery date of machine is within 45 days per set.
4. Shipment in Shenzhen port or Shanghai port, China
FAQ
Q:What's your delivery date?
A:Usually finish the production within 45 days after received your 30% advanced payment, actually need to check according our stock & production plan.
Q: Terms of payment?
A: We accept T/T with 30% in advance and 70% before shipment. Also we could accept L/C at sight.
Q: How many days will the finish installing ?
A: We will finish installation and training within 15days.
Q: How long is your machine's warranty period?
A: All our machine have one year guarantee, starting from the day when finished installation.
Q: How could we do after one year warranty period?
A: We provide 1 year warranty. Within the warranty period, we provide free machine parts and repair service but not including shipping cost if it is not caused by human factors. After 1 year, we provide lifetime service with affordable charge.
Q: How many worker do we need to operate those machines?
A: Usually one machine needs 1-2 operators.
Q: Can you supply raw materials?
A: In addition to producing blister machines, we also produce plastic sheet extruders. If you think the price is right, you can buy our machine to produce sheets. If you do not want to purchase a sheet machine, we can also help you order raw materials and arrange machine shipment.PLEASE FEEL FREE TO CONTACT US !

---
