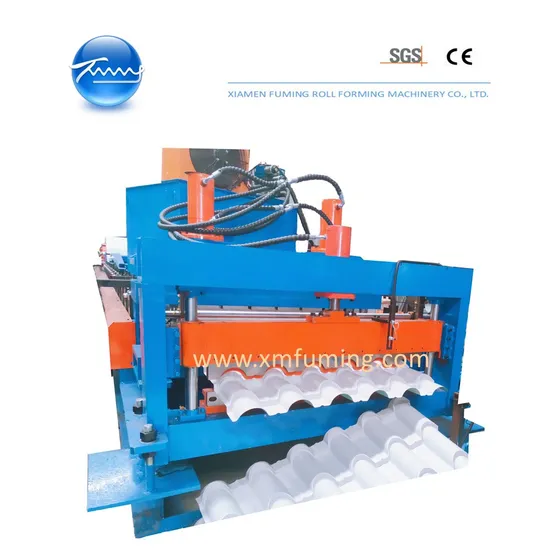

| ROLL FORMING MACHINE FOR YX42-182-910 TILE ROOF |
|
| Material Specification |
| Thickness | 0.35mm to 0.6mm |
| Effective width | 910mm |
| Feeding width | Approx.1220mm |
| Material | PPGI |
| Yield strength | 245MPa to 350MPa |
| |
| Machine Components |
| 5Ton*1250mm Hydraulic Decoiler |
| Coil inner hole expanding | Hydraulic system, 3KW pump motor |
| Speed regulating | Frequency inverter, 3KW motor |
| Expanding type | Taper wedge expanding system |
| Load capacity | Max.5Tons |
| Coil inner diameter | 510±30mm |
| Coil outer diameter | Max.1600mm |
| Coil width | Max.1250mm |
| Stop/start rotation | Automatic stopping device with limited switch to assist |
| Option | Please refer to Decoiler on home page |
| |
| Entry Roller and Manual Pre-shearing Device |
| Working thickness | Up to 0.8mm |
| Function | Smart cut control, to cut off the end of the final piece of sheet only |
| Option | Hydraulic pre-shearing device |
| |
| Roll Forming Machine |
| Polythene film-on device | To avoid scratch on the surface of aluminum while roll forming |
| Driving system | Gear/sprocket |
| Option for driving system | Gear box or toroidal worm box |
| Forming station | 16 stages |
| Roller material | 45# steel, CNC lathes, hard chrome coated |
| Option for roller material | Cr12, Cr12Mov |
| Shafts Diameter | Φ75mm |
| Servo motor | 7.0KW |
| Production speed | Approx. 4 to 5m/min |
| |
| Hydraulic Pressiing and Post-cutting Device |
| Hydraulci pressing | Step height 25mm or customized |
| Cutting type | No Blanking cut |
| Cutting tool material | Cr12, heat treatment |
| Hydraulci pump motor | 11KW |
| | |
| PLC Control System |
| Function | Control pressing, quantity and cutting length automatically |
| PLC | Siemens |
| Touch screen | Siemens |
| Encoder | Omron |
| Cut-to-length tolerance | ≤±1 mm |
| Control Voltage | 24V |
| | |
| Product Rack | Un-powered, three units |
