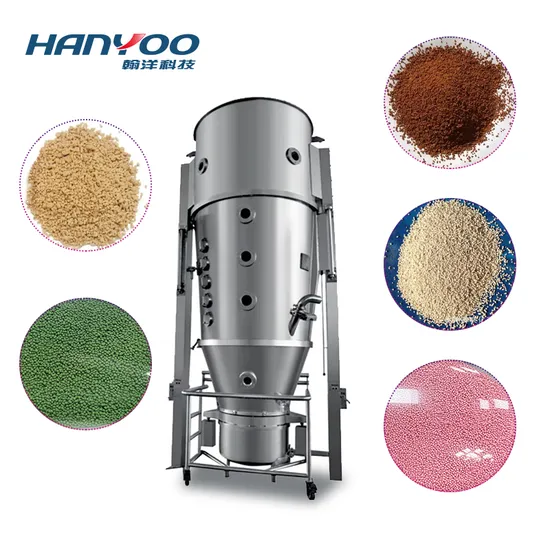

FL Fluid Bed Dryer Granulator One-Step Granulator Machine Fluidized Bed Granulator

Product Description

FL-SERIES FLUID BED DRYER GRANULATOR Product Introduction
WORKING PRINCIPLE
The machine is composed of main machine, air handling system, heating system, slurry handling system and control system. When it works, the materials are fed into the silo of the fluid bed granulator, and after the programs and parameters are set according to the process requirements, the machine starts to work. After filtered by the air handling system and heated by the heating system, the air enters the main machine. After going through the slurry handling system, the slurry is sent to the spray gun and sprayed to the materials inside the cavity, and then is bonded with powder to form granules. After the operation is completed according to the set programs and parameters, the silo is pushed out and connected with the lifting material transferring machine for lifting discharging or the vacuum feeder is used to pump the materials to a high position for granule sizing by the granule sizing machine, so as to effectively control dust pollution and cross contamination.
APPLICATION
The machine is one of the process equipment commonly used in the production of solid preparations in the pharmaceutical industry. It has various functions such as mixing, granulating and drying. It is also widely used in such industries as medicine, chemical industry and food.
Technical Parameter

Model		FL-5	FL-10	FL-20	FL-30	FL-60	FL-120	FL-200	FL-300	FL-500
Raw material vessel volume(L)		27	35	73	112	220	566	739	976	1500
Production capacity(kg/h)		5	15	20	30	60	120	200	300	500
Steam	Pressure(Mpa)	0.4~0.6
	Consumption(kg/h)	45	80	116	116	240	380	420	520	800
Compressed air	Pressure(Mpa)
	Consumption(kg/h)	0.3	0.6	0.9	0.9	0.9	0.9	1.5	1.5	1.5
Fan power(kw)		7.5	7.5	11	11	18.5	22	30	37	45
Overall size(mm)	W	1200	1200	1480	1480	1660	1890	2090	2290	2300
	H	3760	3760	4000	4000	4420	4540	5100	5180	5600
	H1	3270	3270	3600	3690	3690	4230	4315	4420	4800
	Φ	800	800	1000	1000	1200	1400	1600	1800	1800
