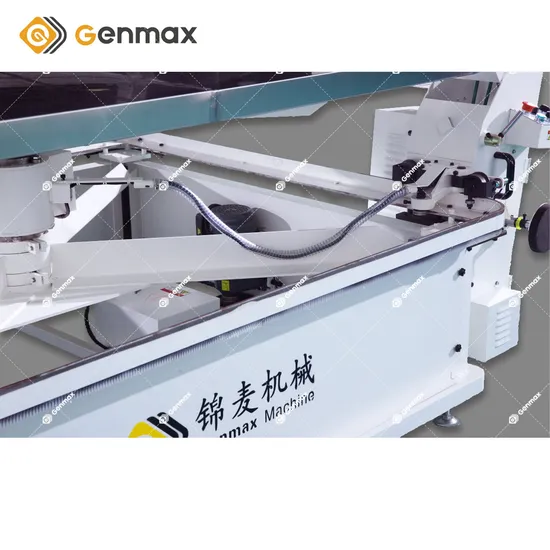

300 U Sewing Head Mattress Boarder Tape Sewing Binding Machine

Product Description

If you need more detailed information and other models, please email us. We will promptly reply to you.
This equipment is mainly used for spring mattress, under the fabric and sew the side edges of the sides between the material, but also for other upholstered sewing mattresses, sleeping bags, tents.
The use of advanced non-comb or comb machine head;
Table lift manually or automatically, (optional)
Automatically adjusts the angle of the nose;
Sewing, carriage driving frequency stepless speed regulation, automatic deceleration turn position;
Suture straight, uniform and appearance;
Set the rack level adjustment device;
Stable operation, little vibration, low noise. parameter

Model	FB3	Thickness of mattress	30-450mm
Table Lifting Range	140mm	Table Size	1280 × 1830mm,1600 × 2000mm, 1800 × 2000mm
Overal Dimension	(1900×2450×1620mm(2220×2620×1620mm) (2420×2620 ×1620mm)	Power	1.2Kw
Weight	600Kg	Power Supply	( 1-Phase, 220V, 50Hz ),(3-Phase, 380V, 50Hz )
Capacity	10-20units/h

---
