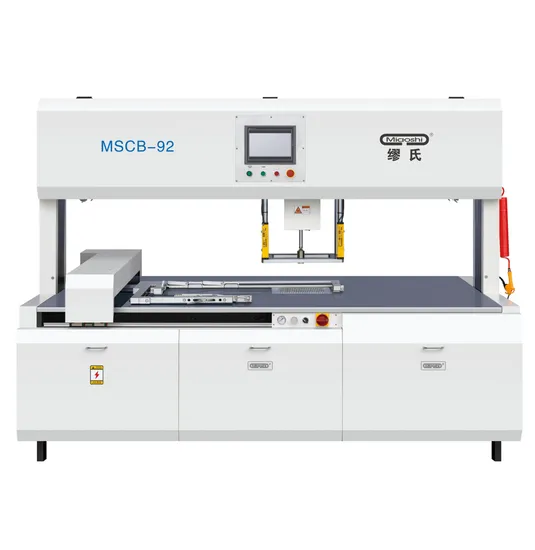

Automatic Box Stripping Machine Blanking Machine

Product Description

Blanking process
MS SEIRES - AUTOMATIC BLANKING MACHINE WITH ROBOT HAND
We are now the biggest manufacturer and exporter for this type of machine.
Based on rich experiences, we offer 50% more blanking product solutions than our competitors.
Introduction
The MS series Blanking Machine series is designed for short-run production of packaging, cards, mounts, and labels. In addition to a strong body to maintain stability, the servo motors and the ball-screw drive system make high levels of precision possible.
The blanking machine has a powerful blanking pin system.The blanking machine can flexibly handle a variety of blank shapes and sizes without the need to make separate blanking tools.
Technical Paramter

DESC	MS-1080S (single head)	MS-1080T (twin head)
Max. Sheet Size	1080*780	680*450
Min. Sheet Size	450*320	450*320
Max. Blank Size	420*280	220*220
Min. Blank Size	30*30	30*30
Pile height	40-120	40-120
Blanking speed	15-20 times/min	15-20
Main power	4kw	4kw
Voltage	380V/50Hz	380V/50Hz
Weight	1900kg	3200kg
Dimension	2900 X 1800 X 1900mm	3500 X 1800 X 1900mm
Packaging size	3060 X 2000 X 2050mm	3700 X 2000 X 2050mm

Features

Material Movement System After the blanking material has been pick ed up, the sheets automatically slide into place, and blanking is performed efficiently.
Arrange Pins to the Proper Shape By simply arranging the pins, the MBM can blank a variety of product shapes and sizes. *Extrusion by pins only on SH540 and TH540 (Material Movement System) models.
Ball-Screw and LM Rail Drive Systems By using the Ball-Screw and LM Rail Drive Systems, blanking precision with smooth and quiet operation is realized.

SECOND GENERATION OF FOOD GRADE PLATFORM
Comparison of two generation of platform - Lower platform height, save a lot of labor and prevent paper piles get crashed - Chrome plated platform for preventing dirty spots on paper - The platform is made of stainless steel and won't get rusty, life long guarantee. - Less procedures are needed during job changing period, increase efficiency and save labors.
Excellent hydraulic system	Double safe protection
Our hydraulic system have multistage of speed, the oil cylinder can goes down slowing when you press the inching bottom, more convenient for job change over.	Protection 1 : Mechanical safe protection Protection 2: High density safe light curtain
Material Movement System	Arrange Pins to the Proper Shape
After the blanking material has been picked up, the sheets automatically slide into place, and blanking is performed efficiently.	By simply arranging the pins, the blanking machine can blank a variety of product shapes and sizes.

Precise arranging pins loader	Mature manufacturing technique
- The high density stripping pin loader is made by CNC processing center. - Reasonable and compact design makes the stripping pin changing jobs are easy and fast. - High precision and no need to change blanking tools	The whole machine parts and accessories are made by fully automatic CNC processing center. Sealed and compact structure, dust proof. Longer machine service life.
Solid structure and bear high pressure	Double servo, Ball-Screw and LM Rail Drive Systems
The new generation of blanking machine adopts a double cross beam structure. This structure is much more solid and it won't get crushed due to high pressure (especially for big models)	The ball screw is driven by double servo to ensure the high product precision By using the Ball-Screw and LM Rail Drive Systems, blanking precision with smooth and quiet operation is realized.

---
