High Speed Pressure Fully Automatic Dry Cleaning and Recycling Water Unnel Car Washer for Service Station

Product Description

Overview

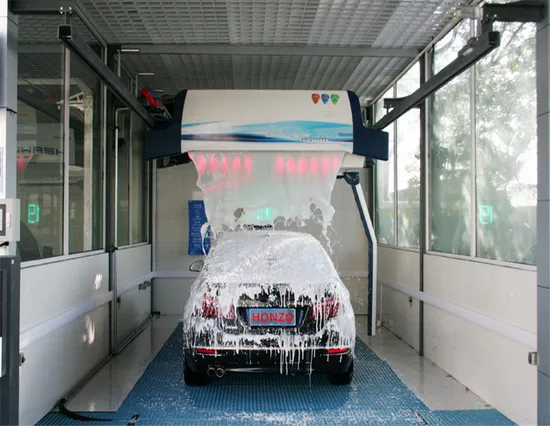

The newest in-bay automatic car wash raises the standard for touchless car wash equipment.
With Revenue Enhancement and Total Cost of Ownership improvements being the main focus, this vehicle wash system delivers the industry's best Return on Investment. Smart 360™ Technology enables the car wash system to be responsive to the dynamic conditions in the wash bay and allows it to "think for itself", increasing up-time and optimizing the wash process.
Substantially faster wash speeds lead to increases in vehicle throughput and shorter lines that will make your customers happy. Simplified machine design and lower energy and utility usages reduce operating costs leading to a more profitable car wash operation.
Key Features Intelligent unmanned systems, self-service card payment system. Smart 360 technology. Intelligent chemical mixing system. Innovative suspension system without resistance rails. Unique embedded fast air drying system. Digital voice security alarm system. Faulty self-checking system. One key anti-frozen system
Functions
1.High pressure pre-wash for under chassis and wheels. Equipped with a unique chassis and fan hub flush function, 70bar high pressure water can effectively remove dirt on chassis, body sides and wheels.
2.Smart 360 rotate arm, spray various washing chemicals with high-precision proportioning technology. 100% accurate measurement with adjustable ratio. only 20~50ml pre-soak comsumption for washing one car through high precision chemical mixing system, save material and cost efficiently. 3.Smart 360 rotate arm, Flush car body 360° with high pressure water.
Complete 360° rotating within 28 seconds, water saving 50%, electricity saving 60%, automatic detect the length and width of the vehicle, up to 80bar high pressure water can easily remove the dirt.
4.Soft water with crystal wax coat.
Soft water can make magic crystal coating color shampoo and wax completely adsorbed body surface, forming a multi-layered interaction strength protective film, car paint become more glorious and beautiful with durable paint protection. Crystal coating of wax can be generated in the paint surface layer polymer, the water softener fused into a hard protective film, with superior protection of car paint, and features anti-acid rain, pollutio, UV erosion.
5.Unique embedded fast air drying system. HZ-H9B(360)-overglow Configuring three 5.5kw and one 4kw motors embedded in the washing machine, control the airflow by four cylindrical outlet, the first task is to split a bunch of wind air, reducing wind drag subsequent to follow airflow to dry the surface of the car body, HZ-H9B(360)-overglow optimize the characteristics of wind speed, other traditional type of fan is to improve the speed, but wind has been minimized when arrive the car body, and in fact the high-speed airflow is the best dried solution.
Technical Parameters:

Main machine size	3500mm*1200mm*900mm
Water pump size	1200mm*700mm*600mm
Chemical mixing system size	800mm*450mm*1400mm
Rail length	7500mm
Min Mounting Dimensions ( length*width*height )	7600mm*3850mm*3350mm
Max car wash size ( length*width*height )	5900mm*2900mm*2050mm
Power Requirement	380V/22Kw, 50Hz/60Hz
Air switch	80A air switch
Total power	45kw
Water pump motor power	15~22Kw
Air fan motor power	20.5Kw / full pressure 11000Pa / air volume 23000 cubic meters
Longitudinal motor power	0.37Kw stepless frequency control
Transversal motor power	0.75Kw servo drive system
Rotary motor power	0.75Kw servo drive system
Chemical mixing system motor power	1.5kw
Central processor	Industrial PLC embedded central processor + dual-core system
Drive System	Servo drive system
Detection system	Smart three-dimensional monitoring system
Sensor System	Ultrasound+ Absolute value of the digital encoder
Speed	360 wash 28 seconds, energy saving 60%
Pre-soak consumption	20~50ML/Car ( Depends on chemical proportioning )
Polish shampoo consumption	50~100ML/Car
Crystal wax consumption	20~40ML/Car
Water consumption	Standard wash 100L/car, Fine wash 150L/car
Electricity consumption	Standard wash 0.52 KW·H/car, Fine wash 1 kW·H/car

Packing details:Polywood case for main machine: 3660*1410*1255mm Polywood case for water pump system: 1350*890*640mm Polywood case for chemical mixing system: 920*545*610mm Rails: 2pcs ( 7.5 meters )
Frames: 13pcs
Shipping weight: 2600kgs, Shipping volume: 11CBM.
Delivery period:15~20 days Payment terms:T/T Shipping terms:EXW, FOB or CIF
