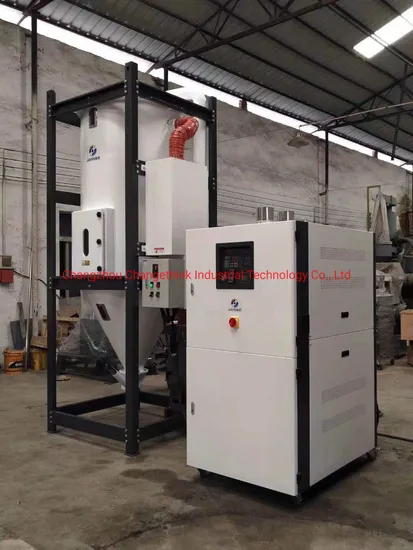

Pet Material All in One Dehumidifying Dryer

Product Description

Parameters of dehumidifying dryer LTY-WDD300-L

Model			LTY-WDD300-L
Dryer Hopper	Hopper Capacity	L	450
	Hopper Capacity	KG	300
	Thermal Insulation		Double layers Stainless steel with imported thermal insulation material
Drying System	Drying Heater Power	KW	15
	Drying Blower Power	KW	1.5
	Drying Temperature	ºC	70~190
Dehumidifying System	Regen. Heater Power	KW	7.2
	Regen. Blower Power	KW	0.4
	Dehumidifying Air Quantity	m³/hr	300
Dew Point		ºC	-40
Feeding System	Feeding Blower Power	KW	1.5
	Vacuum Hopper Receiver	L	12
	Photocell Hopper Receiver	L	12
Control System	Drying Temp. Adjustment		PID Control
	Regen. Temp. Adjustment
	Alarm, Protection Circuit		Overheat Protection (Drying temp. and Regeneration temp.)
			Blower-overload Protection
			Blower-reversion Protection
			Delayed Cooling at Shutoff
Weight		KG	606
Demensions	L	mm	1805
	W	mm	1040
	H	mm	2123

Feature of LOYALTY dehumidifying dryer
1. LOYALTY Dehumidifier adapt UPO molecular sieve rotor, can reach a stable dew-point of less than -45ºC.
2. Closed-loop conveying device eliminates the possibility of moisture regain during material conveying.
3. Hot air recycler equipped as standard, featuring energy saving, no exhaust of hot air and dust, and environmental protection.
4. Suitable for use on engineering plastic materials with strong absorption ability such as PA, PC, PBT, PET, etc.
5. Integration of three functions in one machine, namely dehumidifying, drying and two-section material conveying. Three-section or four-section material conveying is also optional.
6. Using dual-fin cooler design to ensure a lower return air temperature and dew-point.
7. Equipped with material conveying, recycling and regenerating filter to keep the key components such as the fan and honeycomb from dust contamination.
8. The conveying system contains a material cut-off valve to make sure no remains in the tube.
9. Optional dew-point meter with real-time display of dew-point detected.
10. With recyclable and resettable filter to make sure the honeycomb is not contaminated.
11) A thoughtful multiple security device built in.
12) Clear fault code display.
"All-in-one" compact drying, dehumidifying, two-stage conveying in one unit, easy to operate and energy saving.

---
