Good Quality Factory Price Cylindrical Grinding Machine M1420 Hydraulic Surface Grinding

Product Description

Good Quality Factory Price Cylindrical Grinding Machine M1420 Hydraulic Surface Grinding
Product Description
Product main technical specifications :

Specifications		Units	M1420	M1432B	M1432H	M1450	M1463
General capacity	Distance between centers	mm	500/750	1000/1500	2000/3000	1500/2000/3000/4000	2000/3000/4000,5000
	Center height	mm	125	180	180	270	370
	Dia. Ground(O.D)	mm	5~200	8~320	8~320	25~500	30~630
	Dia. Ground(I.D)	mm	13~80	30~100	30~100	30~200	30~250
	Max. length ground(I.D)	mm	125	125	125	320	320
	Max. weight of work piece	kg	50	150	500	1000	3000
Work head	Swiveling angle	°	+90°	+90°	+90°	+90°	+90°
	Center taper	MT	4	4	5	6	Metric 80#
	Spindle speed /Stepless	r/min	Spindle speed 63/125/250/500 Stepless 30-300	50HZ:26-260	50HZ:26~260	50HZ:20~224	50HZ:14~140
Wheel head	Wheel size (ODxWxID)	mm	400*50*203	400×50×203	500×50×203	500×75×305	600×75×305
	Peripheral velocity	m/s	35	35	35	35	35
	hand feed per rev	mm/rev	Rough:1 precision:1	Rough:2 precision:0.5	Rough:2 precision:0.5	Rough:4 precision:0.5	Rough:4 precision:0.5
	hand feed per gra	mm/gra	Rough:0.002 precision:0.001	Rough:0.01 precision:0.025	Rough:0.01 precision:0.025	Rough:0.02 precision:0.0025	Rough:0.02 precision:0.0025
Internal Grinding device	Spindle speed	r/min	9245/12250/14848/19600	10000	10000	10000	10000
	Wheel size (OD*W*ID)	mm	Max.:50*32*16 Min.:12*15*5	Max.:50*25*13 Min.:17*20*6	Max.:50*25*13 Min.:17*20*6	Max.:175*32*32 Min.:30*25*10	Max.:175*32*32 Min.:30*25*10
Table	Max. swiveling angle of table (Clockwise)	°	9° (500) 8° (750)	3°	3°	3°(1500) 2°(2000/3000) 1°(4000)	2°(2000/3000) 1°(3000/4000/5000)
	Max. swiveling angle of table (Anticlockwise °)	°	9° (500) 8° (750)	7° (1000) 6° (1500)	5° (2000) 3° (3000)	6° (1500) 5° (2000) 3° (3000) 2° (4000)	4°(2000) 3° (3000) 2°(4000) 1.5° (5000)
	Longitudinal speed range of table	m/min	0.1~3	0.1~4	0.1~3	0.1~3	0.1~2.5
Tailstock	Center taper	MT	4	4	5	6	Metric 80#
	Quill travel	mm	25	30	30	70	70
Motor	Wheel head motor power	kw	5.5	5.5	7.5	5/7.5	7/11
	Internal grinding motor power	kw	0.55	1.1	1.1	1.5	1.5
	Workhead motor power	kw	0.75	1.5	1.5	4	15
Machining accuracy	Roundness	μm	3	2.5	3	2.5(1500) 3(2000/3000/4000)	3
	Cylindricity	μm	5(500) 8(750)	8	8	8(1500/2000/3000) 12(4000)	8(2000/3000) 12(4000/5000)
	Roughness	μm	Ra0.16	Ra0.2	Ra0.32	Ra0.32	Ra0.32
Machine	Machine weight	kg	3000 (500) 3300 (750)	3800 (1000) 4000 (1500)	6200 (2000) 7200 (3000)	9500 (1500) 10000 (2000) 11700 (3000) 14000 (4000)	18000 (2000) 19000 (3000) 23000 (4000) 26000 (5000)
	Overall dimension(L * W * H)	mm	2030*1630*1750 (500) 2930*1630*1750 (750)	3260*1900*2050 (1000) 4260*1900*2050(750)	5800*1900*2050 (2000) 7800*1900*2050(3000)	5430*2250*2100 (1500) 5830*2250*2100 (2000) 7960*2250*2100 (3000) 9960*2250*2100 (2000)	7200*2400*2260 (2000) 8760*2400*2260 (3000) 11000*2400*2260 (4000) 12700*2400*2260 (5000)

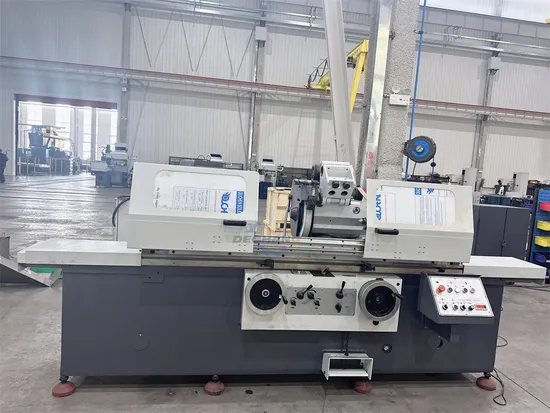

Detailed Photos

Company Profile
What We Do?
Our main products are :
CNC Lathe Machine, CNC machining center, CNC Milling Machine, CNC Turning Center, Lathe machine, Milling machines,,Drilling machine, Sawing machine, Grinding machine and other metal-working machines and accessories.
Our Machines Application Fields:
1.Aviation industry: 5-axis machining centers, horizontal and gantry machining centers, precision CNC lathes, etc. can be used to process parts such as aircraft wings, fuselages, empennages and engines
2.Railway locomotive manufacturing industry: CNC lathes, vertical and horizontal machining centers, and five-axis machining centers can process high-speed rail locomotive bodies, axles, wheels and other parts
3.Mold manufacturing: high-speed CNC milling machine, high-precision CNC machining center, precision grinding machine can process automotive panel molds, die-casting molds, forming extrusion molds, etc.
4.Power equipment manufacturing industry: For power generation equipment, heavy CNC gantry milling machines, large floor milling machines, large CNC lathes,
In addition, our machine tool products can also be used in weapon manufacturing, electronic information equipment manufacturing, metallurgical equipment manufacturing.

WHY CHOOSE US?
QUALITY COMMITMENT
Company is committed to bring efficient, high precision and stability to all users by insisting on providing our customers with high quality machines.Company machines passed ISO, CE Certificates.
SERVICE SUPPORT
The warranty period is general 13 months after B/L date. During the warranty period, if the parts are damaged because of itself quality problems,except human factors and improper operation, we will provide free replacement parts. Meanwhile, the machine should be under normal operation according to Operation Manual.
Company also provide provide online technical support, voice and video guidance.
Our Facotry
MANUFACTURER CAPABILITY
The company has purchased high-precision and high-efficiency advanced equipment from well-known domestic and foreign brands, and the company's machining and production technology level has been continuously improved, resulting in a continuous increase in production capacity. Company provide first-class machines to to meet the needs of domestic and foreign customers.
R&D CENTER
Company collected first-rate professionals in domestic machine tool trade and established long-term technical cooperative relations with other famous machine manufactures. Meanwhile, companmy pays more attention to introducing advanced foreign technology, and makes great efforts to achieve technical renovation and develop market oriented highly sophisticated products.
Company provide comprehensive cnc machines and manual machines to global customers.
Whether you are an end user, a dealer, or a machining factory, you can send your technical requirements, specifications, drawings, and we will provide the most and we will provide the most suitable machine or a comprehensive processing line solution.

After Sales Service
SERVICE SUPPORT
From the moment you become part of the DECHANG, we are fully dedicated to guiding you, answering your questions and supporting your business. You can rest assured that with DECHANG, you always have a trusted partner to guide you every step of the way. See how our Technical Support services can answer your questions and help you solve your most pressing issues.

1.Warranty

The warranty period is general 13 months after B/L date. During the warranty period, if the parts are damaged because of itself quality problems,except human factors and improper operation, we will provide free replacement parts. Meanwhile, the machine should be under normal operation according to Operation Manual.
2.Quick Response

Our top-notch, expert technical support specialists are there for you seven days a week, 24 hours a day, so you can always count on us to provide help when you need it most.
3.Online Technical Support

On the Whatsapp or Wechat, our technician and sales will deliver solution by taking video and words instructions.
4.Overseas Commissioning and Installation
This is a paid service. If an engineer is required for overseas installation and debugging, please contact the salesperson to obtain the cost

FAQ
1: Where is your company A: Our company is located in Tengzhou City, Shandong Province.2: What about your warranty?A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free3: How do you offer after-sale service?A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems4. What is your standard package? A: Our package is export standard plywood case with pallet.5: What's the Payment Terms? A: T/T, 30% initial payment when order, 70% balance payment before shipment; 6: What's the MOQ? A: 1 set.

---
