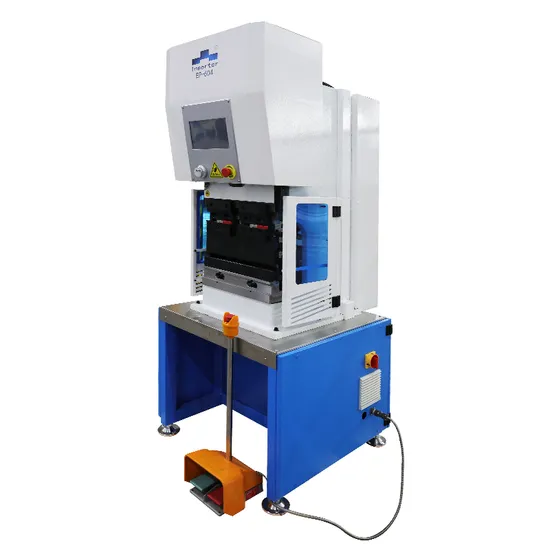

Opening Height 420mm Approach Speed 200mm/S Bending Length 400mm CNC Press Brake

Product Description

Product Features
• Mini CNC press brake, 6 ton 60KN
• Servo motor Drive-Technology provides high precision bending results. • 100% Pure electric power, with no oil. • Up to 50% less energy consumption compared to ahydraulic press brake. • Up to 35% faster compared to a hydraulic press brake. • High efficiency and precision. • High bending speed and less noise. • Full bending length between side frames. • Less maintenance cost.
• Eco friendly. • Friendly user interface. Product Parameters

Model	EP-604
Bending Force	6Ton(60KN)
Bending Length	400mm
Throat Depth	160mm
Axis	2
Distance Between Column	370mm
Stroke	120mm
Opening Height	420mm
Back Gauge Stroke	200mm
Main Motro Power	3KW
Approach Speed	200mm/s
Return Speed	200mm/s
Bending Speed	30mm/s
Repeat Positioning Accuracy	±0.01mm
Size	750*750*2980mm
Weight	560kg
