Waste Plastic PE HDPE Pipe Recycling Machine Plastic Shredder Machine/Plastic Crusher/Shredding Machine

Product Description

waste plastic PE HDPE PIPE recycling machine Plastic Shredder Machine/Plastic Crusher/Shredding Machine
Product Description
Specifications
1. composed by shredder and crusher
2. suitable big HDPE pipe plastic drum lump
3. heavy duty
General description of plastic shredder machine:
plastic shredder machine is designed for crushing big volume plastic and hard plastic, such as:
plastic drums made of HDPE/PP, HDPE pipe, Plastic lumps, even wood pallets and so on.

Plastic shredder machine composed by:

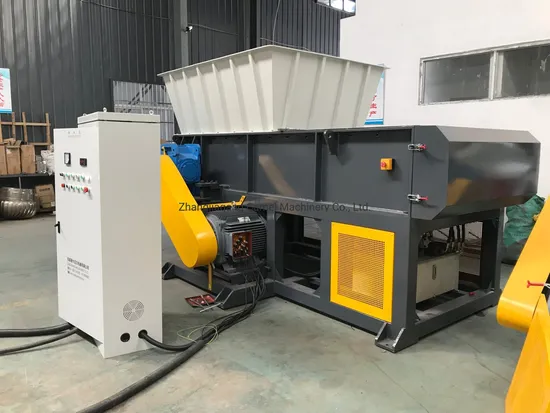

1.single shaft shredder
2.conveyor
3. plastic crusher
4. blow wind system

the Model of single shaft shredder:

Model	Power (kw)	Number of rotary knife	Knife size (mm)	Shaft Rotating diameter (mm)	Dimension of crushing chamber (mm)	Output (kg/h)	Weight (kg)
WD-500	18.5	28	40*40 or 50*50	φ280	500*550	300~500	2800
WD -600	22	32		φ280	600*650	500~600	2900
WD -800	45	44		φ350	800*850	500~800	4100
WD -1000	55	52		φ350	1000*1050	800~1000	6500
WD -1200	75	68		Φ350	1200*1250	1000~1200	7000
WD -1500	90	81		Φ550	1500*1600	1000~1500	10500
WD -1600	110	85		Φ550	1600*1700	1000~1600	13800

the Model of crusher :

Model	motor power	rotating blade	fixing blade	Output
PC600	18.5KW or 22KW	10 or 30Pcs	2Pcs	200-300kg/h
PC800	30KW OR37KW	10 or 24Pcs	4Pcs	500-600kg/h
PC1000	55KW	10 or 24Pcs	4Pcs	600-800kg/h

Detailed image
Company information
FAQ
FAQ of plastic shredder equipment
Q: Are you trading company or manufacturer ?
A: We are factory.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 45-60 days if the goods are not in stock, it is according to what kind of machine you need

Q: Do you provide samples ? is it free or extra ?
Contact us :
Company name: Zhangjiagang Camel Machinery Co.,ltd
Address: Yongli Economic development zone, LeYu town, Zhangjiagang city, Jiangsu province, China
Website: camelmachinery.en.made-in-china.com

---
