US$15,000.00-30,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Model NO.
XK6325 XK7124 XK7125
Type
Worktable Milling Machine
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Overall Welding Tooth
Automatic Grade
Automatic
Certification
CE, RoHS, ISO 9001
Transport Package
Plywood Case
Specification
1200x1500x2100mm
Production Capacity
50 PCS/Month
Product Description

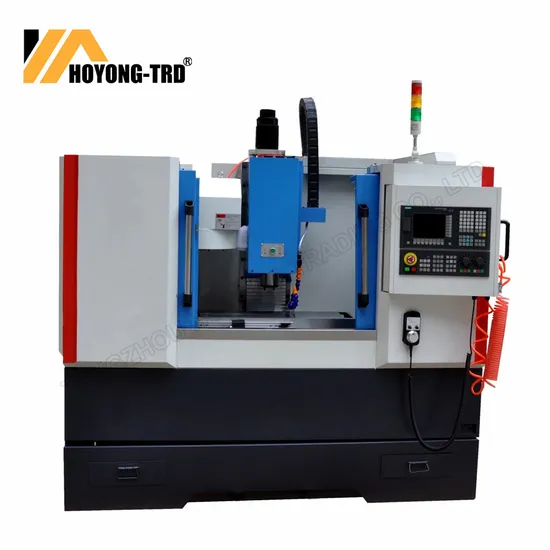

CNC MILLING MACHINE FEATURES:
1. Used for machining box parts, shell parts, disc-shaped parts.
2. Rectangular guide-way with plastic-sticking, high rigidity, high stability and strong support.
3. Column and guide way is ground precisely with high precision
4. Spindle is equipped with tool-hit cylinder to make tool released and clamped pneumatically. Tool-change is more safely and quickly.
5. CNC control system could be adapted by step motor or servo motor, providing good cost-effective scheme to customers.
SPECIFICATOINS:
| ITEM | XK7125 |
| X-Axis travel | 535mm |
| Y-Axis travel | 320mm |
| Z-Axis travel | 375mm |
| Distance from Spindle nose to worktable surface | 25-425mm |
| Distance from center of spindle to surface of column ram | 345mm |
| T slot (width x no.) | 16mmX3 |
| Worktable size | 1000X250mm |
| Max.loading of worktable | 120Kg |
| Power of spindle motor | 1.5/2.2KW |
| Spindle speed | 4000/(or 8000/12000) |
| Spindle taper | BT30 |
| Spindle bearing | P4 |
| Rapid traverse speed of 3 axes | X /Y:15m/min(servo) |
| Z:15m/min(servo) |
| Cutting feeding rate | 0-2000mm/min |
| Min.set unit & moving unit | 0.001mm |
| Pitch of X/Y axes | 6mm |
| Pitch of Z axis | 6mm |
| Positioning accuracy (300mm) | ±0.008 |
| Repeat accuracy (300mm) | ±0.005 |
| Changing way of tools | Manual |
| Tool spec. max.dia. (neighboring Tool) x weight x length | φ60mmX3.5KgX175 |
| Machine weight | 1700kg |
| Air pressure | 0.6MPa |
| Power of cooling pump for cutting | 370W |
| Overall size | 1516X1764X1708mm |
>>
