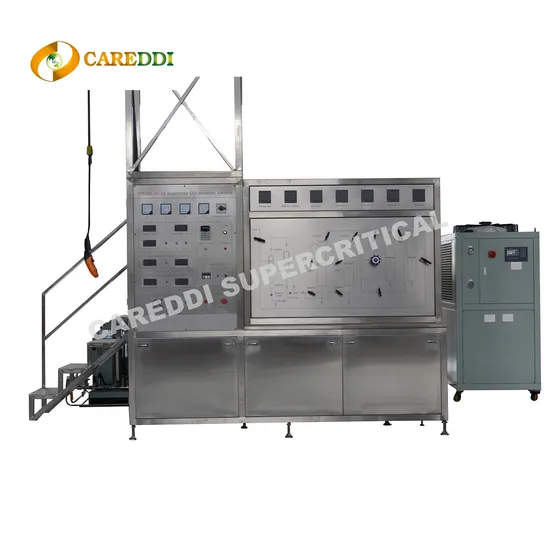

| Main Part List of 24Lx2 Supercritical CO2 Extraction | |||
| Part Description | Qty(set) | Made Material | |
| 1 | Extraction Vessel | 2 | #304 Stainless steel |
| 2 | Material Cylinder | 2 | #304 Stainless steel |
| 3 | Separation Vessel | 2 | #304 Stainless steel |
| 4 | Pump | 2 | |
| 5 | Cooling System | 1 | |
| 6 | Heating Exchange System | 4 | #304 Stainless steel |
| 7 | Purification System | 1 | #304 Stainless steel |
| 8 | CO2 Storage Tank | 1 | #304 Stainless steel |
| 9 | Flow rate Meter | 1 | |
| 10 | Temperature Control System | 4 | |
| 11 | Safety valves | 5 | |
| 12 | Over-pressure gauge | 1 | |
| 13 | Control panel | 1 | #304 Stainless steel |
| 14 | Main machine frame and operation desk | 1 | #304 Stainless steel |
| 15 | Operation plat form | 1 | Carbon steel |
| 16 | Hoist | 1 | |
| MAIN TECHNICAL INDEX | ||
| Extraction tank | Material | Equipped with jacket water circling heating system, temperature adjustable, equipped with material barrel for both liquid and solid material. |
| Volume | 24Lx2 | |
| Working pressure | 40MPa | |
| Separation tank | Material | Equipped with jacket water circling heating system, temperature adjustable |
| Volume | 2X10L | |
| Max working pressure | 30MPa | |
| CO2 high pressure pump | Flow Rate (Triple plunger) | 600L/H |
| Max working Pressure | 40MPa, pumps head with cooling system | |
| Solvent pump | Flow Rate | 0.25-20L/H |
| Max working Pressure | 40MPa (Mechanical adjustable) | |
| Cooling system | Cooling Capacity | 20000Kcal/h (air cooling) |
| Temperature range | -5ºC~+5ºC (meet process requirement) | |
| Heat exchange system | Type: Φ14/40Mpa, Φ18/30Mpa With circulating water jacket heating system, adjustable temperature | |
| Purification system | Volume | 5L |
| Max working Pressure | 16MPa | |
| CO2 storage tank | Volume | 30Lx2 |
| Max working Pressure | 16MPa | |
| Level meter | Model | 1200/16MPa |
| Digital indicator | indicate both instant flow rate and accumulation | |
| Temperature control system | Temperature Range | Room temperature~75ºC adjustable |
| Accuracy | ±1ºC | |
| Safety devices and other components | Pressure gauge at high pressure pump outlet, overpressure protection. | |
| Safety valve at extraction tank, separation tank, distillation column, Overpressure automatic relief. | ||
| Pipe lines | Valves, fittings: DW6 All parts connected with fluid material are made by 1Cr18Ni9Ti Stainless steel. | |
| Total power | 3 Phase, 39.37Kw | |
| Range of Application | Type of Application |
| Pharmaceutical Industry | Extraction of effective contents of Chinese herbs, concentration, refinement and precipitation of raw material drug, separation and refinement of fatty mixtures. Such as: hops, chili color , frankincense oil, vanilla oil, mint oil, nutmeg oil, agarwood oil, seabuckthorn seeds oil, cinnamon, coconut oil, coffee beans, etc. |
| Foodstuff | Extraction of hops, caffeine removal from coffee berry, extraction of plant |
| Cosmetics and Perfumery Industry | Separation and refinement of natural and synthetic perfumeries, dealkalization of tobacco, extraction of raw material cosmetics. |
| Chemical Industry | Separation of hydrocarbon, refinement of organic synthetic raw material, separation of azeotrope, retrieval of raw materials of reaction, dehydration of water soluble powder of organic solution, water oxidation. |
| Others | Superconducting, semiconductor, ceramics, oil washing of petroleum core, enzyme catalytic reaction, preparation of materials, superfine granules, extraction of complex compound, supercritical dyeing technique, supercritical reaction, supercritical coating technique (pharmacy-making). |
