Hand-Held Smelting Molten Steel Molten Iron Liquid Copper Thermometer with Thermocouple for Contact Liquid Metal Casting Smelting Temperature Measuring

Product Description

Abstract:

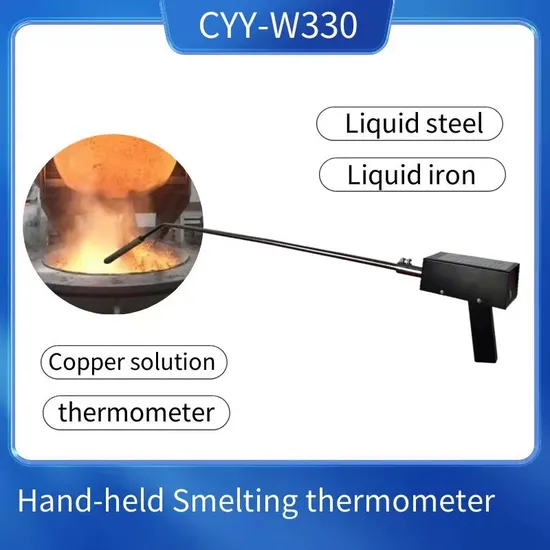

Application of CYY-W330 portable melting thermometer:
CYY-W330 portable smelting thermometer is produced by Nanjing changyouyi Analytical Instrument Manufacturing Co., Ltd. It is a high-precision special thermometer specially developed for smelting, casting and other industries to quickly measure the temperature of molten metal in the smelting process. The temperature measuring instrument is based on high-performance single-chip microcomputer, adopts high-precision measuring sensors and various intelligent processing technologies, which improves the anti-interference ability of the instrument and ensures the long-term stable operation of the temperature measuring instrument. The thermometer can be used together with the corresponding thermocouple to measure temperature rapidly and accurately in a variety of smelting occasions.


Features
CYY-W330 portable melting thermometer adopts the integrated design with the temperature measuring gun. According to the working environment of the melting temperature measuring field is bad and the temperature is high, the portable melting thermometer adopts the shock resistant all metal shell design and high brightness LED digital tube display, which is durable. It has the following characteristics:
1. When the temperature measurement in the furnace is successful, the temperature value will be maintained automatically.
2. Lights and buzzers simultaneously prompt the end of temperature measurement (the test gun can be lifted).
3. Alarm for coupling breaking, over range, power under voltage, etc
4. The power supply adopts Ni MH rechargeable battery (it can measure temperature thousands of times after one charge). Turn on the power, when there is no signal input for 2 minutes, automatically turn off the power (power saving)
5. Five kinds of thermocouples can be used. Because of the anti-interference measures adopted, it has excellent anti-interference ability. When the medium frequency furnace is electrified for melting, it can measure temperature in the furnace without power off.

Thermocouple	Type	Measuring range (ºC)	Applicable occasion
Single platinum and rhodium	KS-602 /T4	0~1750	Steel, iron, copper liquid
Single platinum rhodium	OR /HR	0~1750	Steel, iron, copper liquid
Double platinum rhodium	KB-602 /T4	500~1800	high temperature molten steel
Tungsten rhenium	KW-602 /T4	0~2000	Steel, molten iron
Tungsten rhenium	KD-602 /T4	0~2000	Steel, molten iron

Company Profile

ChangYouYi experimental analysis instrument is made in China
Nanjing Changyouyi Analytical Instrument Co., Ltd. is a famous research and development manufacturer of analytical instruments, a contract and trustworthy enterprise. The company integrates R&D, production, sales, training, maintenance, and technical consultation, and has gathered a group of high-tech senior professionals who have been engaged in analytical instruments for a long time. Incorporating domestic and foreign microcomputer and sensor technology, infrared technology and optics, machinery, inspection and other technologies, starting from the actual needs of customers, research and development of a series of high-speed analysis instruments and supporting testing equipment, such as: carbon silicon analyzer in front of furnace , Melting thermometer in front of furnace, infrared carbon and sulfur analyzer, multi-element analyzer, spectrum analyzer, metallographic analyzer, five element analyzer, copper alloy & aluminum alloy analyzer, ore analyzer,Portable hardness tester, bench hardness tester, ultrasonic flaw detector, universal experimental tension machine, coating thickness tester, high-precision electronic balance and other laboratory testing equipment.
Instrument design and application industry:
The design of the instrument is novel and reasonable, and the technical level is advanced. It is an ideal and widely used laboratory, analysis and testing equipment. It is suitable for industrial and mining enterprises such as steel rolling, metallurgy, casting, machinery, railways, quality and technical supervision bureaus, construction quality inspection institutes, colleges and universities, scientific research institutes.

Used to analyze metal elements (carbon, sulfur, silicon, manganese, phosphorus, copper, nickel, chromium, molybdenum, rare earth, magnesium, titanium, zinc, lead, aluminum, iron and other element content).
Used to analyze the carbon and silicon content of the molten iron in front of the furnace and measure the temperature of the molten iron in front of the furnace. Used for physical analysis and testing of metal hardness, metallographic structure, tensile strength, etc.

---
