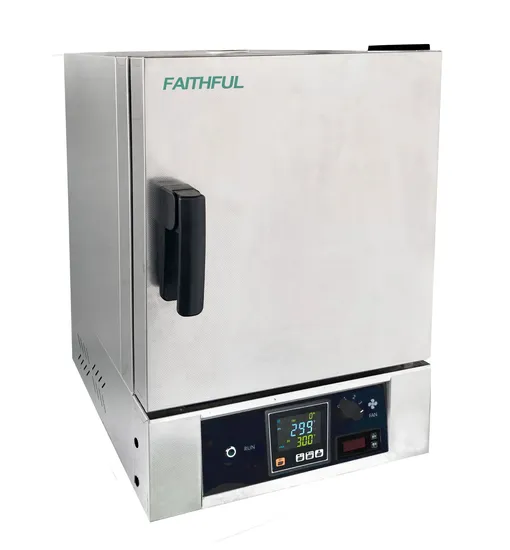

SUS304 Forced Air Drying Oven, Hot Air Sterilizing Drying Oven

Product Description

Forced Air Drying Oven Used for drying, baking, wax, heat treatment Product characteristic :
1. Horizontal air circularly by double Air ducts, high efficiency and high Uniformity.
2. PID controller, with over-temperature protection function.
3. With fan switch,LED digital display,high temperature blast motor.
4.New anti-hot handle

WGLL-BE series have the following characteristics other than the above functions
1. LCD temperature controller.
2. 4 grades speed fan, adjustable for different requirements.
3. Over-temperature protection system.
4. High precision digital independent temperature limiter.
5.304:SUS304 Stainless Steel Body.
Main Technical Parameters:

Model			WGL- 30B	WGL- 45B	WGL- 65B	WGL- 85B	WGL- 125B	WGL- 230B	WGL- 625B
			WGLL- 30BE	WGLL- 45BE	WGLL- 65BE	WGLL- 85BE	WGLL- 125BE	WGLL- 230BE	WGLL- 625BE
			WGLL- 30BE(304)	WGLL- 45BE(304)	WGLL- 65BE(304)	WGLL- 85BE(304)	WGLL- 125BE(304)
Cycle Mode			Forced convection
Function		Temp. Range	RT+10-300ºC
		Temp. Resolution Ratio	0.1ºC
		Temp. Motion	±1ºC
		Temp. Uniformity	±2.5%
Structure		Inner Chamber	Mirror Stainless Steel
		Outer Shell	Cold rolling steel electrostatic spraying exterior
		Insulation layer	High quality rock wool board(with CE)
		Heater	Stainless steel heater
		Power rating	0.8kW	1.2kW	1.6kW	2.0kW	2.3kW	3.0kW	5.0kW
		Exhaust hole	φ28mmtop(with function of test hole)					Rear exhaust	Top double exhaust
Controller		Temp. control mode	Two temperature section PID intelligent
		Temp. setting mode	Touch button setting
		Temp. display mode	B model: Measuring temperature: display on the four digital tubes upper row, setting temperature: display on the lower row
			BE model: Measuring temperature display on upper LCD screen, setting temperature display on the lower row
		Timer	0-9999min(with timing wait function)
		Operation function	Fixed temperature operation, timing function, auto stop.
		Additional function	B model: Sensor deviation correction, temperature overshoot self- tuning, internal parameter locking, power-off parameter memory
			BE model: High precision digital independent temperature limiter, 4 grade 3speed adjustable-speed fan (230 and 625model BE without fan speed adjustor),sensor deviation correction, temperature overshoot self- tuning, internal parameter locking, power-off parameter memory
		Sensor	pt100
Specification		Inner Chamber size (W*L*H)(mm)	310*310 *310	350*350 *350	400*360 *450	450*420 *450	500*450 *550	600*500 *750	660*760 *1250
		Exterior size (W*L*H)(mm)	450*500 *690	490*540 *730	540*550 *830	590*610 *830	640*640 *930	730*680 *1250	890*925 *1830
		Packing size (W*L*H)(mm)	550*585 *845	590*625 *885	640*635 *985	690*695 *985	740*725 *1085	860*79 0*1400	1000*10 80*2000
		Volume	30L	45L	65L	85L	125L	230L	625L
		Shelf number	6	7	9	9	13	17	7
		Load per rack	15kg
		Shelf space	35mm						150mm
		Power rating (50/60HZ)	AC220V/ 3.6A	AC220V/ 5.5A	AC220V/ 7.2A	AC220V/ 9.0A	AC220V/ 10.5A	AC220V/ 13.6A	AC380V/ 13.2A
		NW/GW (kg)	33/37	37/43	44/49	50/56	60/66	94/120	120/160
Accessory		Shelf	2
		Shelf frame	4
optional accessories			B model: Shelf; BE model: Shelf,RS485 interface, printer, program temperature control device, remote control, wireless SMS alarm, USB data storage

---
