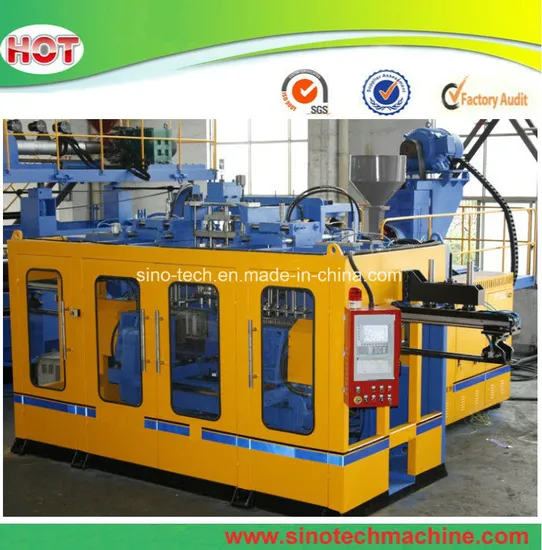

Plastic Products Blow Moulding Making Machinery/Chemical Barrel Jerrycan Blowing Machine

Product Description

Plastic Products Blow Moulding Making Machinery/Chemical Barrel Jerrycan
Blowing Machine

Technical Parameters

Max. Product Volume(L)	18
Station	Double
Dry cycle (PC/H)	700*2
Screw Diameter (MM)	90
Screw L/D Ratio (L/D)	25
Screw Drive Power (KW)	37
Screw Heating Power(KW)	15.6
No.of heating zone(Srew)	4
Output of HDPE(kg/h)	130
Hydraulic pump driving power (KW)	11
Clamping force(KN)	158
Platen distance (MM)	300*680
Mold moving stroke (mm)	700
Max. Size of Mold(W*H)(mm)	690*540
Capacity of Accumulator head(L)
Max.Die diameter (Single-head)(mm)	220
Die heating power(Single-head)(KW)	9.1
No.of heating zone(Single-head)(Zone)	3
Central Distance Of Bi-head(mm)	240,260
Max.Die diameter(Bi-head)(mm)	145
No. of heating zone(Bi-head)(Zone)	7
Heating power(Bi-head)(KW)	15
Blowing pressure(Mpa)	0.6
Air consumption(m³/MIN)	0.8
Cooling water pressure(Mpa)	0.3
water consumption(L/MIN)	60
Size of machine(L*W*H)(m)	4.2*3.4*3.1
Weight of machine(TON)	11

Features
1. Electric system: Mitsubishi PLC from Japan and human-machine interface
2. Hydraulic system: YUKEN hydraulic valves and pump from Japan
3. Plastisizing system: Effective, energy-saved screw
4. Die head specially designed for PC material
5. Clamping unit: Adopting linear slide way with precision up to um grade
6. Parison injecting: Single hydraulic cylinder without non-synchronization
7. Mould changing: Extruding cover can be adjusted up and down, diehead can be moved by hydraulic, and mould changing is very easy.
Detail Show
Production Workshop
Packing & Shipping

After Sales service:
1. We offer you the free machine operation training happened in China.
2. Offering the free testing and installing of the machine in the buyer factory, but the fee of the visa, the ticket, food and living should be in the buyer's charge.
3. The spare parts of the machine and the auxiliary machine can be supply by us.
4. The guarantee of the machine is one year under the normal operation.
5. We offer the customer the technology for free for all life time.
